Vindaion VD5000 Handheld Power Quality Analyzer - Harmonic Tester & Energy Monitor for 3-Phase Electrical Systems
$3,802.51 USD
$7,605.02 USD
Скидка $3,802.51 USD
Доставка рассчитывается при оформлении заказа.
Количество
Product Description
The Vindaion VD5000 is a professional-grade, handheld power quality analyzer designed for comprehensive electrical system diagnostics. Engineered for electricians, engineers, and maintenance professionals, it delivers precise, real-time measurement of 3-phase voltage, current, harmonics, power, and energy parameters. Featuring a large 5.6-inch color LCD with 640×480 resolution, the VD5000 provides clear visualization of waveforms, phasor diagrams, and harmonic spectra. Its dual-processor architecture (DSP+ARM) ensures high-speed data acquisition and analysis, while the intuitive bilingual interface (Chinese/English) simplifies operation in the field. With 4 voltage and 4 current input channels, the VD5000 can simultaneously monitor all phases and neutral, making it ideal for identifying power quality issues such as voltage sags, swells, harmonics, unbalance, and transients. The device also supports long-term trend logging (up to 300 days), transient capture, and inrush current analysis, providing deep insights into system performance and reliability.
Key Features

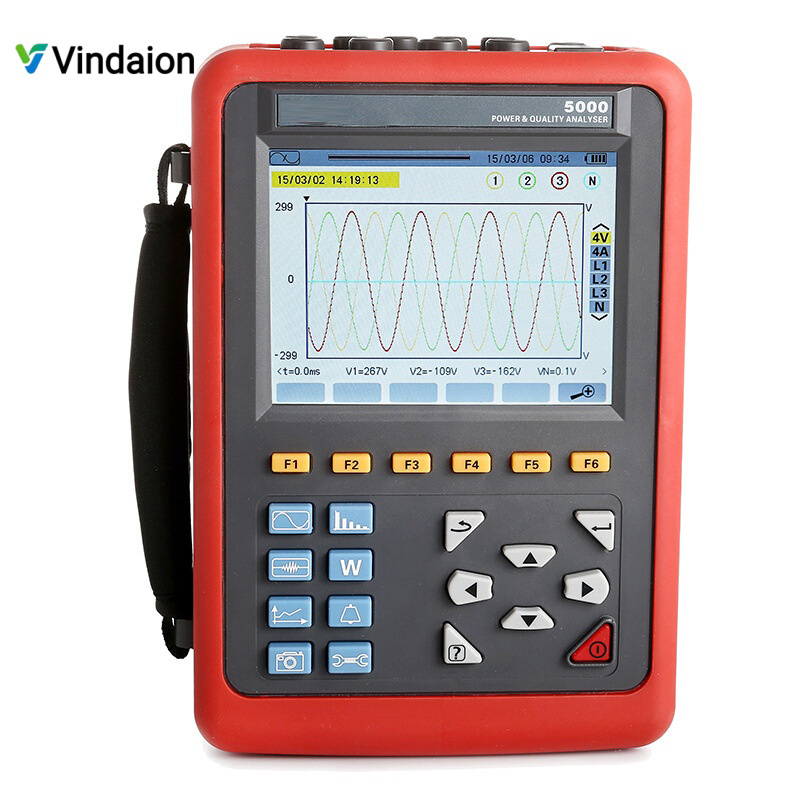

- 5.6" Color LCD Display: High-resolution screen for clear viewing of waveforms, harmonics, and phasor diagrams.
- Comprehensive Measurement: Simultaneously measures 4-phase voltage (up to 1000V) and 4-phase current (up to 3000A with optional CTs).
- Harmonic Analysis: Measures up to the 50th harmonic for both voltage and current, with THD calculation.
- Power & Energy Parameters: Calculates real, reactive, and apparent power, power factor, displacement power factor, and energy consumption.
- Transient & Inrush Capture: Records voltage sags, swells, interruptions, and inrush currents with high-speed sampling (up to 1MSPS).
- Long-Term Data Logging: Stores up to 300 days of trend data for 20 selectable parameters, sampled every 5 seconds.
- Rugged & Portable: Shock-resistant ABS housing with IP54 protection, ideal for industrial environments.
- USB Connectivity: Easily export data to a PC for further analysis and report generation.
Technical Specifications
General Specifications
- Model: VD5000
- Display: 5.6-inch color LCD, 640×480 dots, 116mm×88mm viewable area
- Processor: Dual-core DSP+ARM architecture
- Sampling Rate: Up to 1MSPS (Mega Samples Per Second)
- Memory: 2GB internal storage, supports up to 60 waveform captures, 150 transient records, and 12,800 alarm logs
- Battery: Rechargeable 9.6V lithium battery pack, ~6 hours continuous operation
- Dimensions: 240mm × 170mm × 68mm
- Weight: 1.6kg (with battery)
- Operating Temperature: -10°C to 40°C, <80% RH
- Storage Temperature: -10°C to 60°C, <70% RH
- Safety Standards: IEC 61010 1000V Cat III / 600V Cat IV, IEC61010-031, IEC61326, Pollution Degree 2

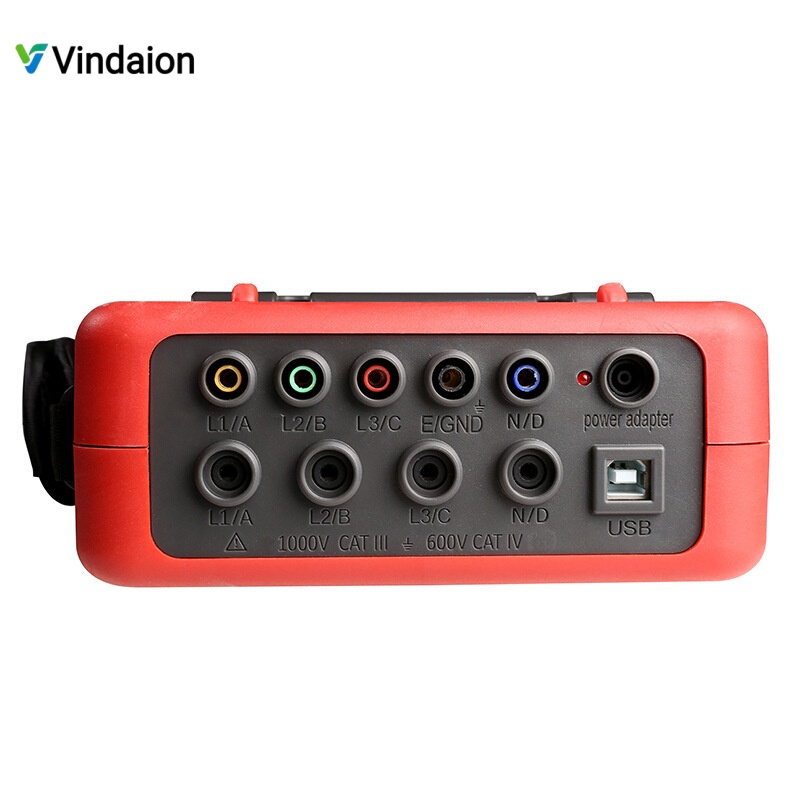

Input Channels & Measurement Ranges
- Voltage Inputs: 4 channels (L1, L2, L3, N), 1.0V ~ 1000V AC, 40Hz ~ 70Hz
- Current Inputs: 4 channels, compatible with various current clamps (see below)
- Voltage Measurement Accuracy: ±(0.5% + 5dgt) for true RMS
- Current Measurement Accuracy: ±(1.0% + 2dgt) for true RMS (with compatible CT)
Power & Energy Parameters
- Active Power (W): 0.000W ~ 9999.9kW, Accuracy: ±(1%+3dgt) for Cosφ≥0.8
- Reactive Power (VAR): 0.000VAR ~ 9999.9kVAR, Accuracy: ±(1%+3dgt) for Sinφ≥0.5
- Apparent Power (VA): 0.000VA ~ 9999.9kVA, Accuracy: ±(1%+3dgt)
- Power Factor (PF): -1.000 ~ 1.000, Resolution: 0.001
- Displacement Power Factor (DPF): -1.000 ~ 1.000, Resolution: 0.001
- Energy (Wh, VARh, VA h): 0.000 ~ 9999.9M, Resolution: 0.001
Harmonic & Power Quality Analysis
- Harmonics: Up to 50th order for voltage and current
- Total Harmonic Distortion (THD): 0.0% ~ 99.9%, Resolution: 0.1%
- Voltage Unbalance: 0.0% ~ 100%, Resolution: 0.1%
- Frequency: 40Hz ~ 70Hz, Resolution: 0.01Hz, Accuracy: ±(0.03)Hz
- Phase Angle: -179° ~ 180°, Resolution: 1°, Accuracy: ±(2°)
Data Logging & Capture
- Trend Logging: Up to 300 days, records 20 parameters every 5 seconds
- Transient Capture: 150 groups of transient waveforms (voltage/current)
- Inrush Current: 100-second capture of startup current waveforms
- Screen Capture: 60 screenshots with timestamp and mode
Current Clamp Options (Sold Separately)
- 008B Mini Clamp: 10mA ~ 10A, 7.5mm jaw
- 040B Standard Clamp: 0.10A ~ 100A, 35mm jaw
- 068B Large Clamp: 1.0A ~ 1000A, 68mm jaw
- 300F Flexible Rogowski Coil: 10A ~ 3000A, 300mm diameter

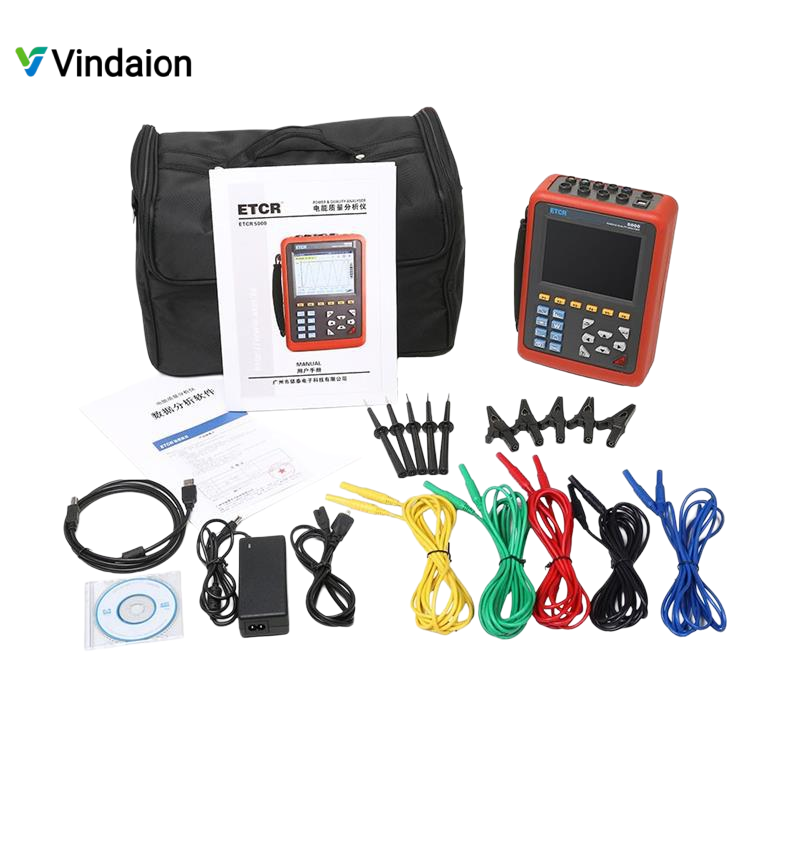

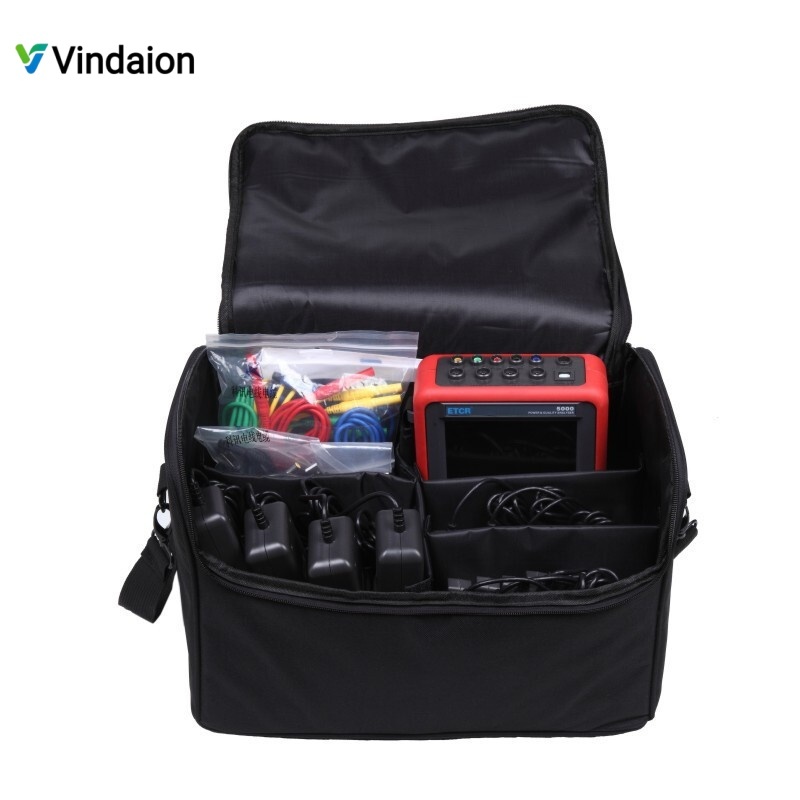

Included Accessories
- VD5000 Main Unit ×1
- Test Leads (5 colors) ×5
- Alligator Clips ×5
- Probes ×5
- Charger ×1
- Software CD ×1
- 2GB SD Card ×1
- Carrying Case ×1
