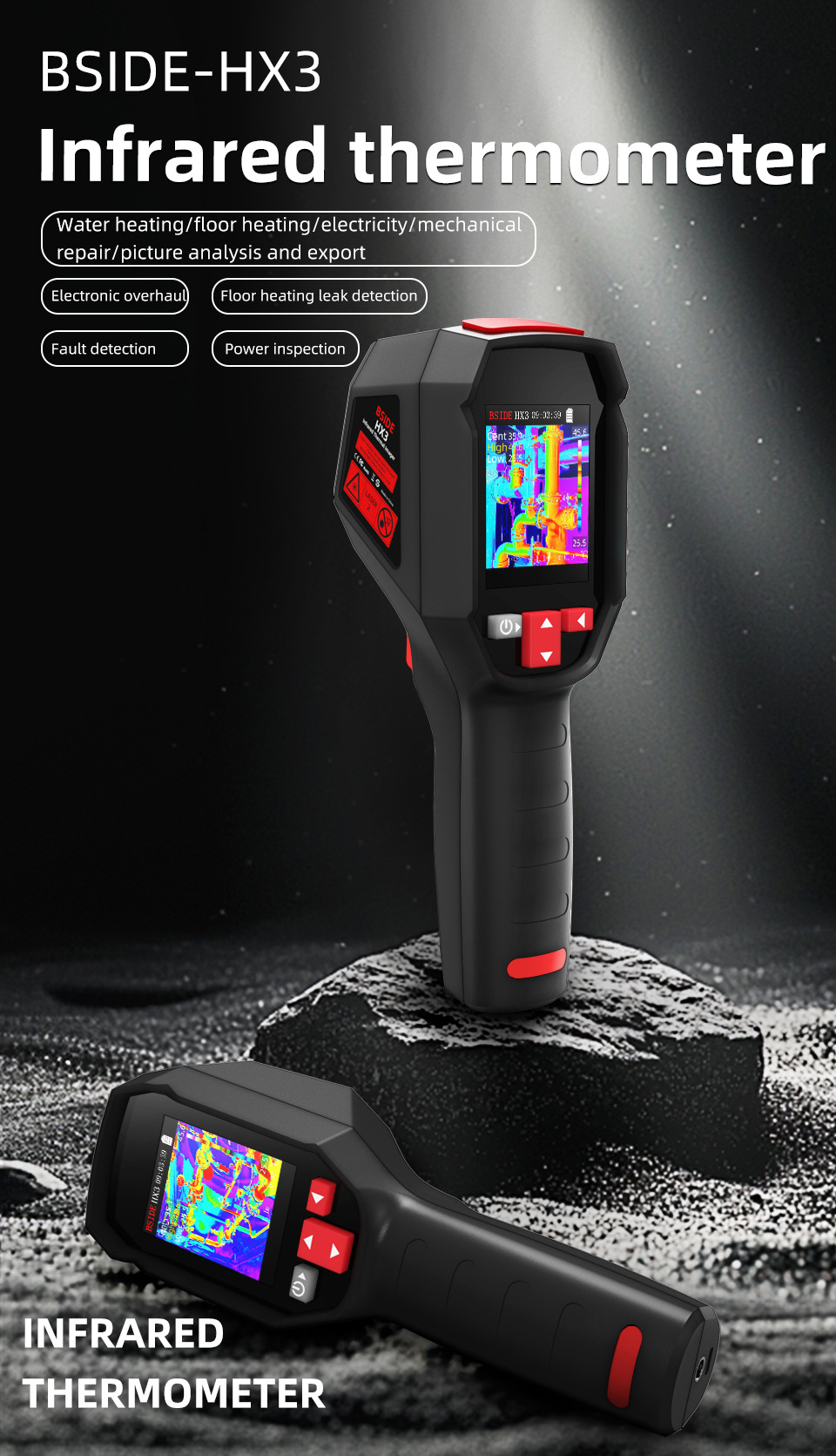

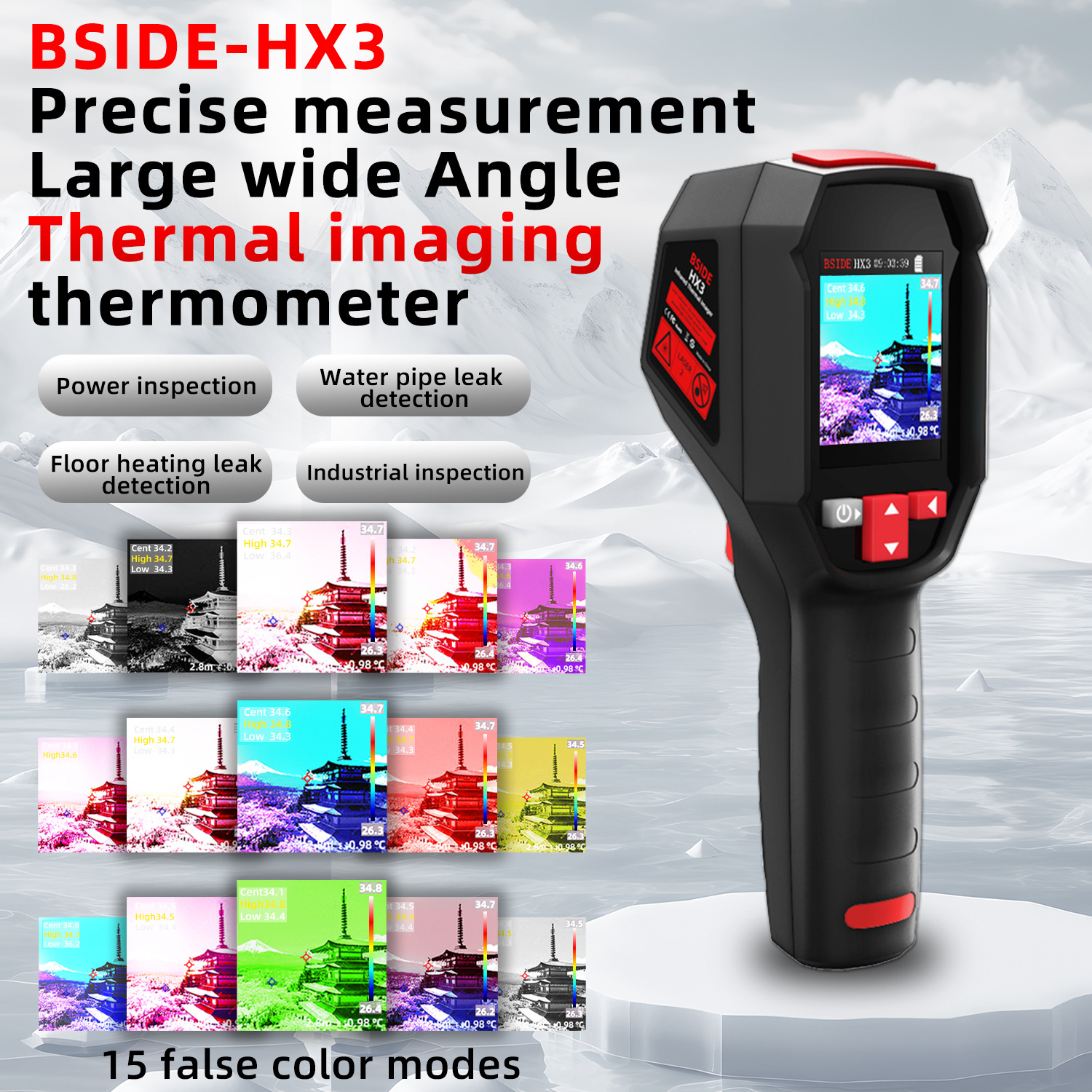

Vindaion HX3 Handheld Infrared Thermal Imager - Non-Contact Temperature Measurement for Electrical Inspection & Industrial Diagnostics
$167.68 USD
$335.37 USD
Скидка $167.69 USD
Доставка рассчитывается при оформлении заказа.
Количество
Product Description
The Vindaion HX3 is a high-precision, handheld infrared thermal imaging camera designed for professionals in electrical maintenance, industrial inspection, HVAC, and home repair. Equipped with a 240×240 infrared resolution sensor and a 2.4-inch HD LCD screen, it delivers clear thermal images with 15 false color modes to visualize temperature differences instantly. With a wide temperature range from -20°C to 550°C and ±2°C accuracy, the HX3 ensures reliable, non-contact temperature measurement in diverse environments. Its rugged ABS plastic body with IP54 protection and 1.5-meter drop resistance makes it ideal for field use. Whether you're inspecting circuit breakers, detecting pipeline leaks, or analyzing engine heat distribution, the HX3 provides fast, accurate, and actionable thermal data to improve safety and efficiency.
Key Features

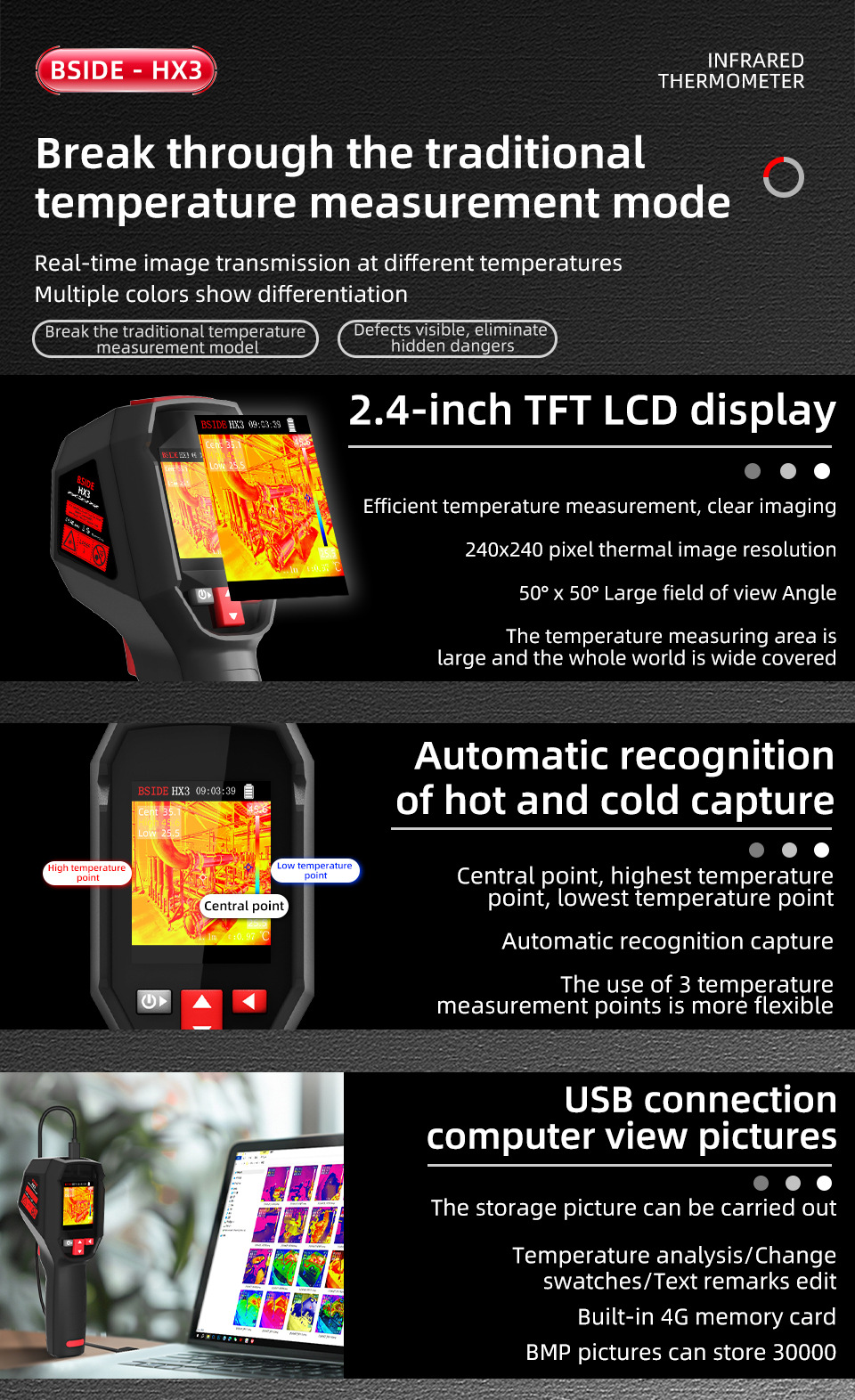

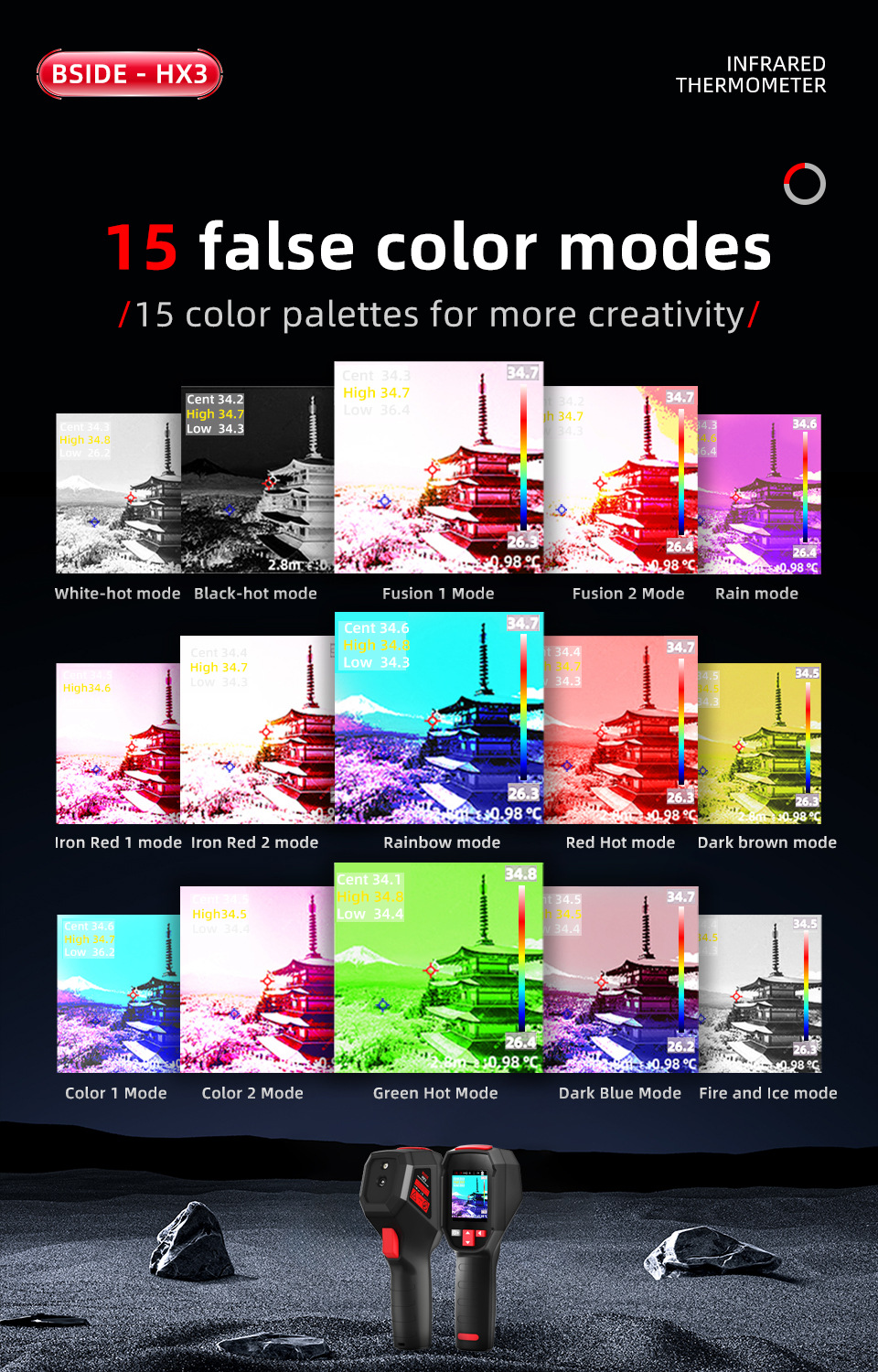

- High-Resolution Thermal Imaging: 240×240 infrared resolution with 15 false color palettes for enhanced visual analysis.
- Wide Temperature Range: Measures from -20°C to 550°C with ±2°C accuracy and 0.1°C temperature resolution.

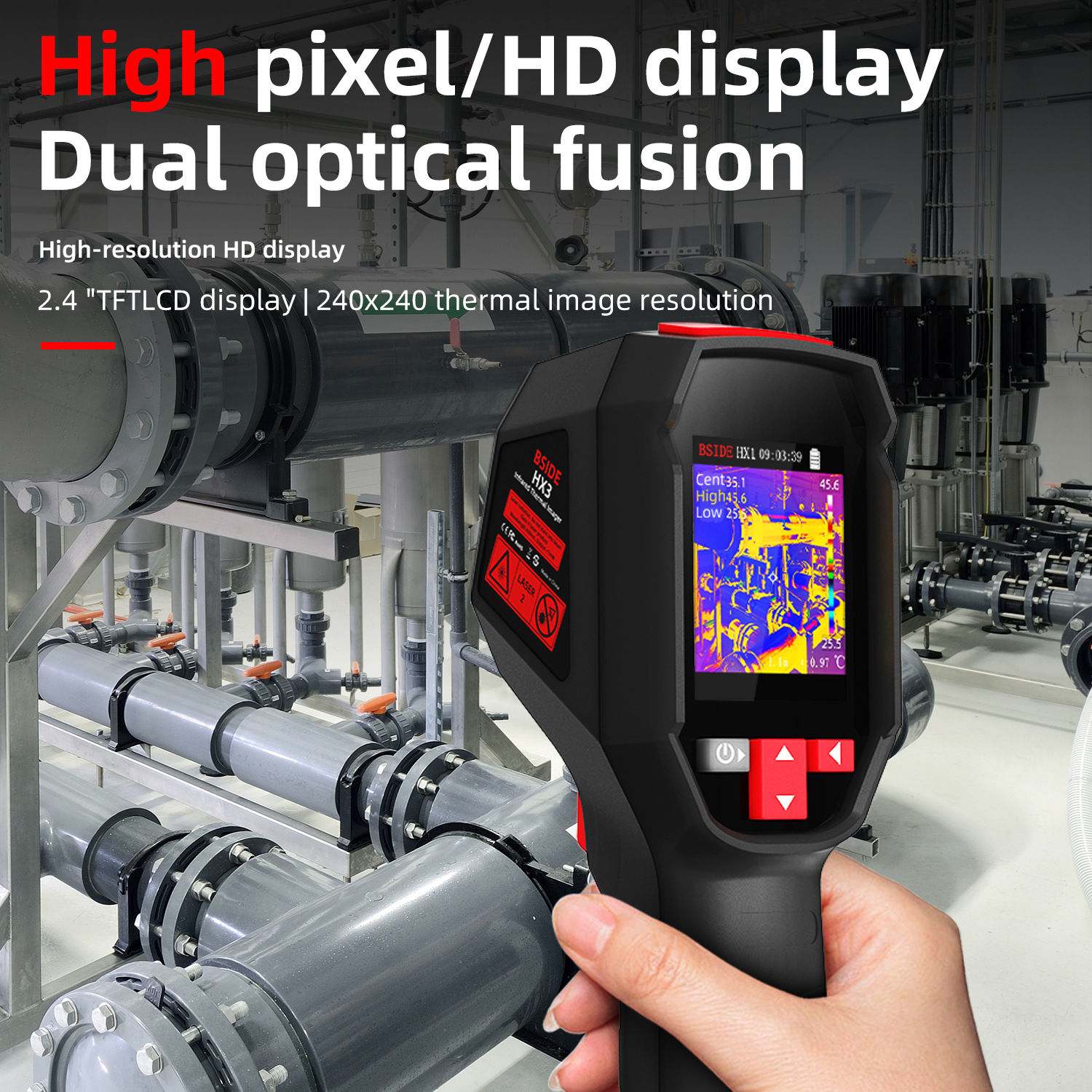

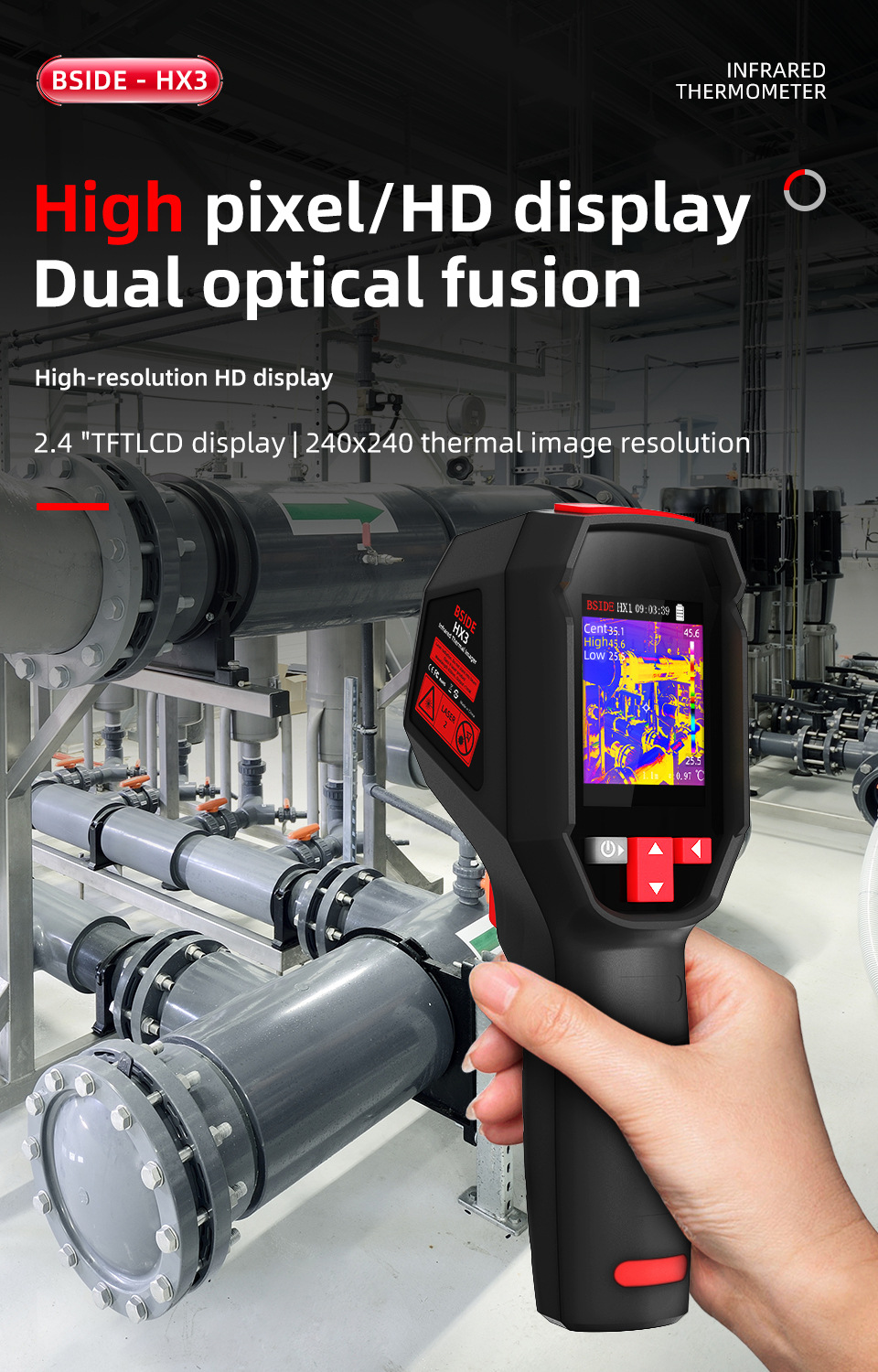

- Dual Optical Fusion: Combines visible light and thermal images for precise target identification.

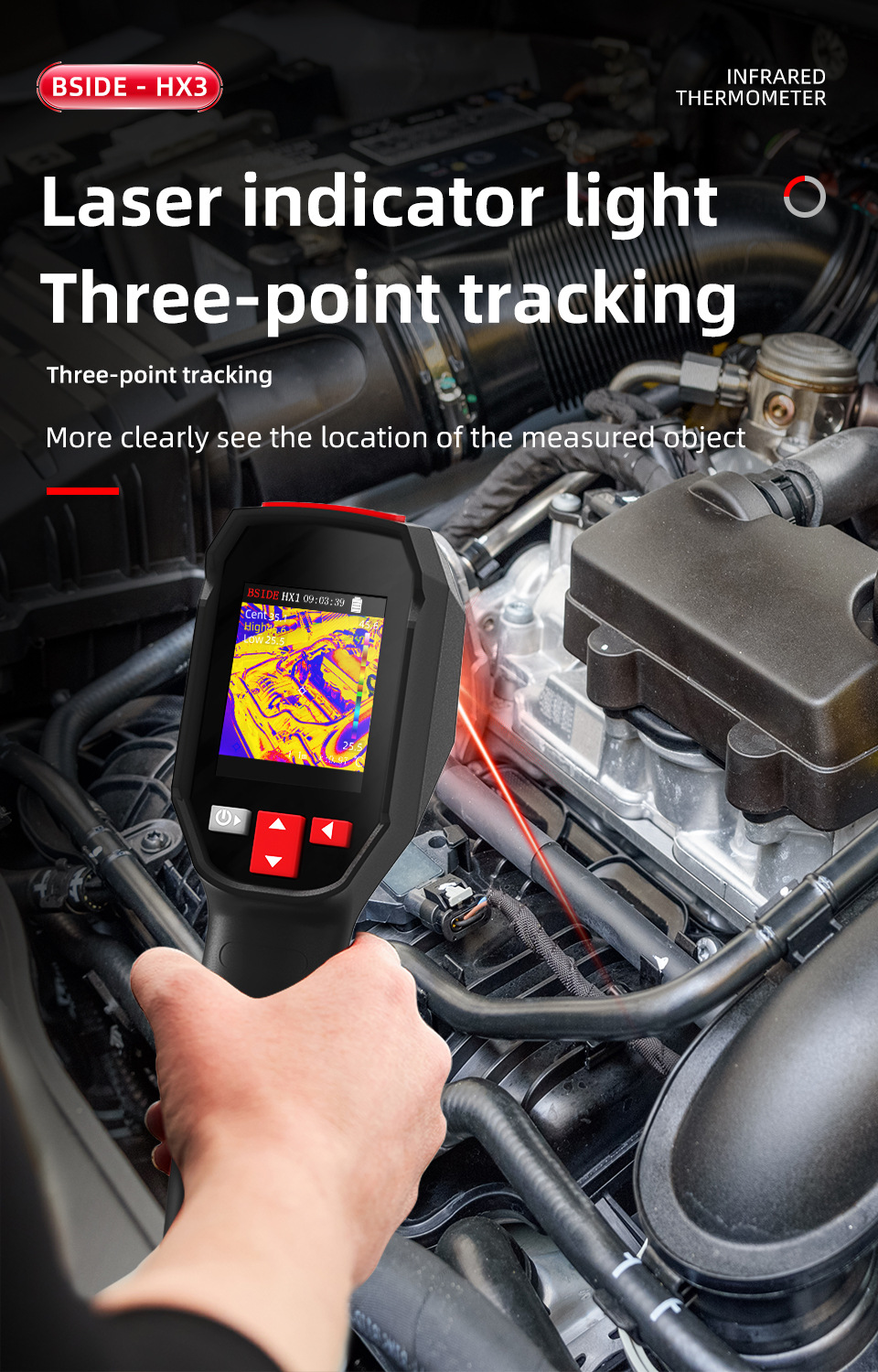

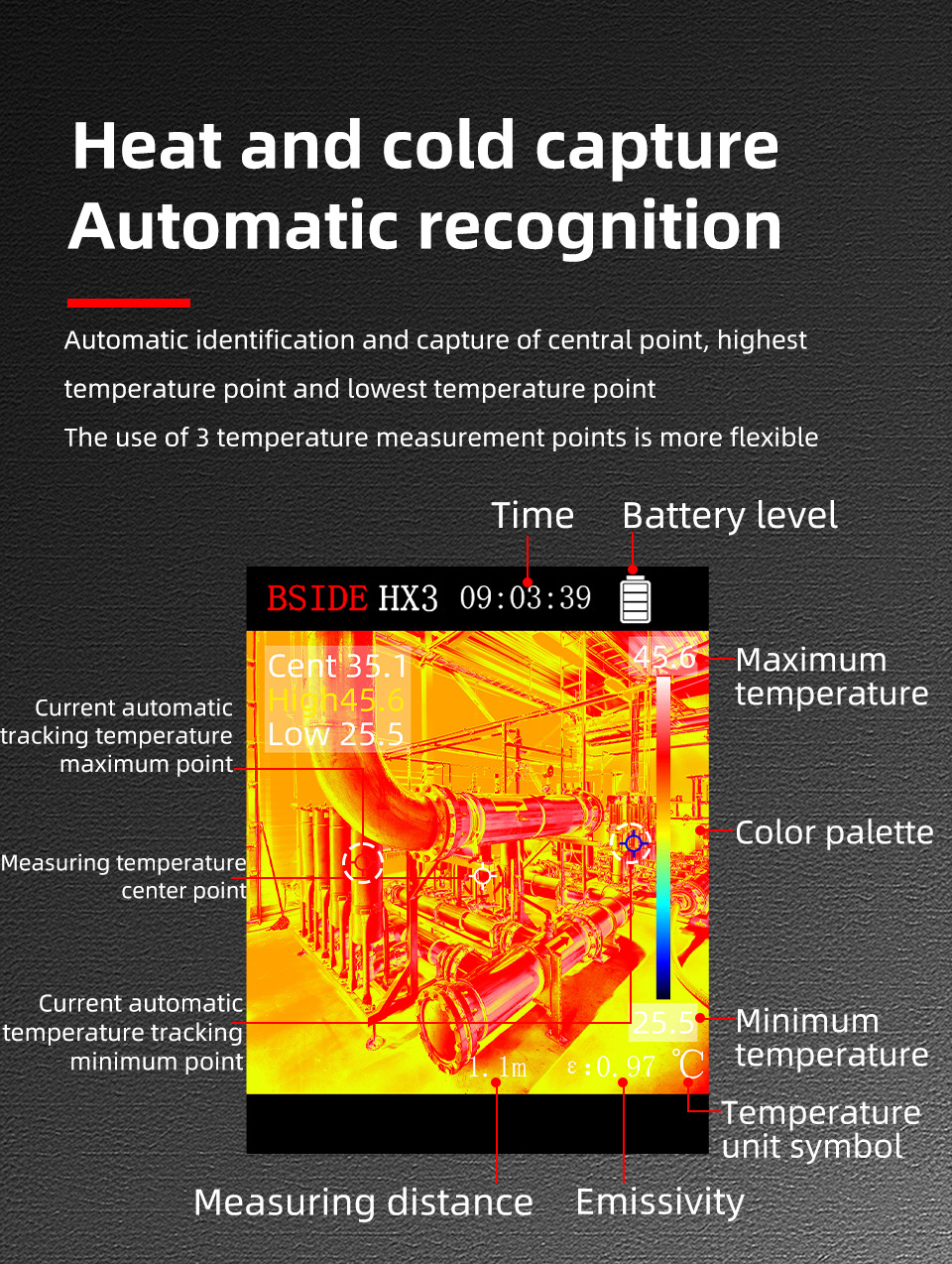

- Laser Pointer & Three-Point Tracking: Helps pinpoint exact measurement locations with center, max, and min temperature tracking.

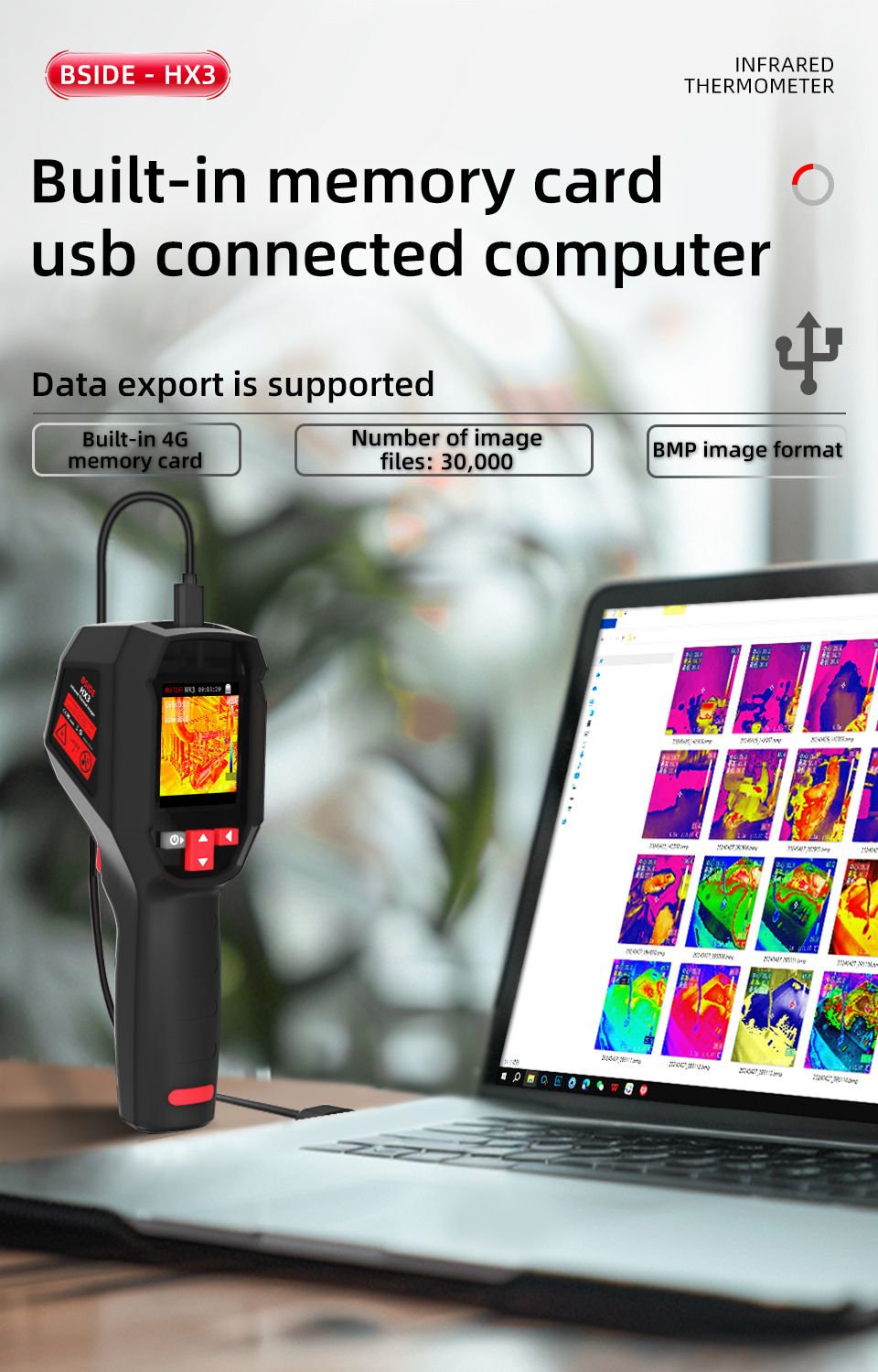

- Built-in 4GB Memory: Stores up to 30,000 BMP images; supports USB-C connection to PC for data export.

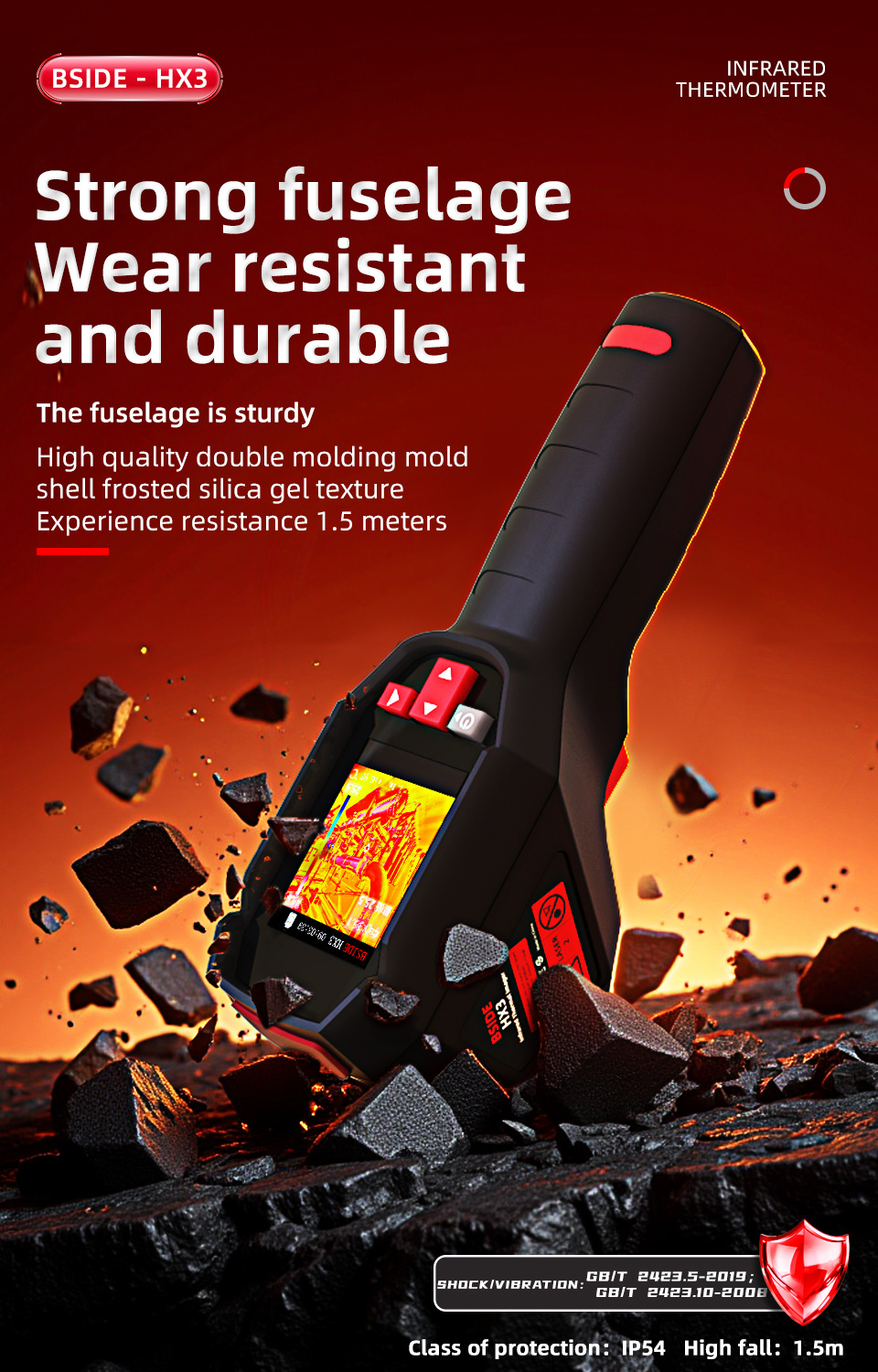

- Durable & Portable Design: IP54 rated, withstands 1.5m drops; powered by rechargeable battery with auto-shutdown.

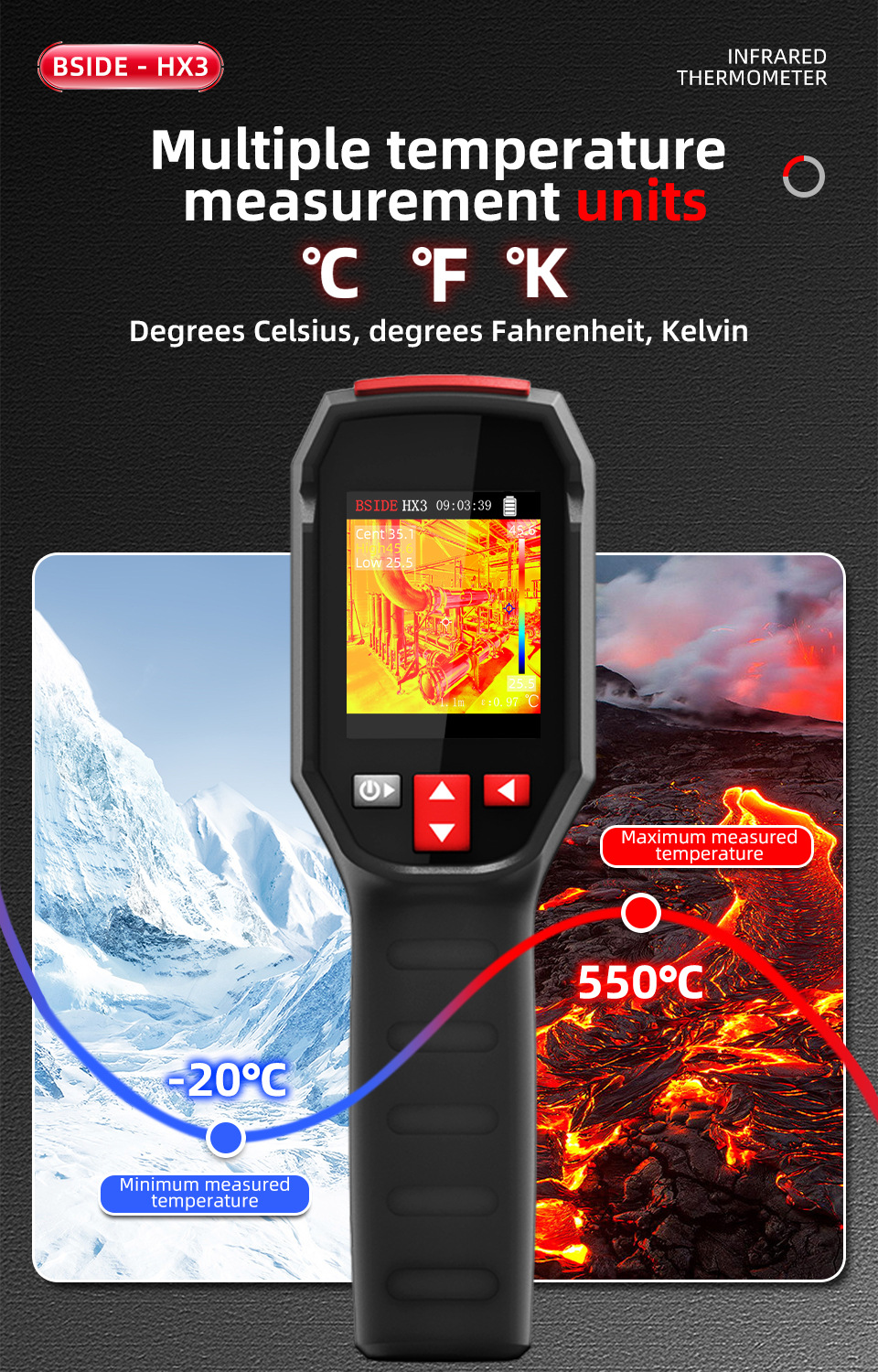

- Multi-Unit Support: Displays temperature in °C, °F, and K.

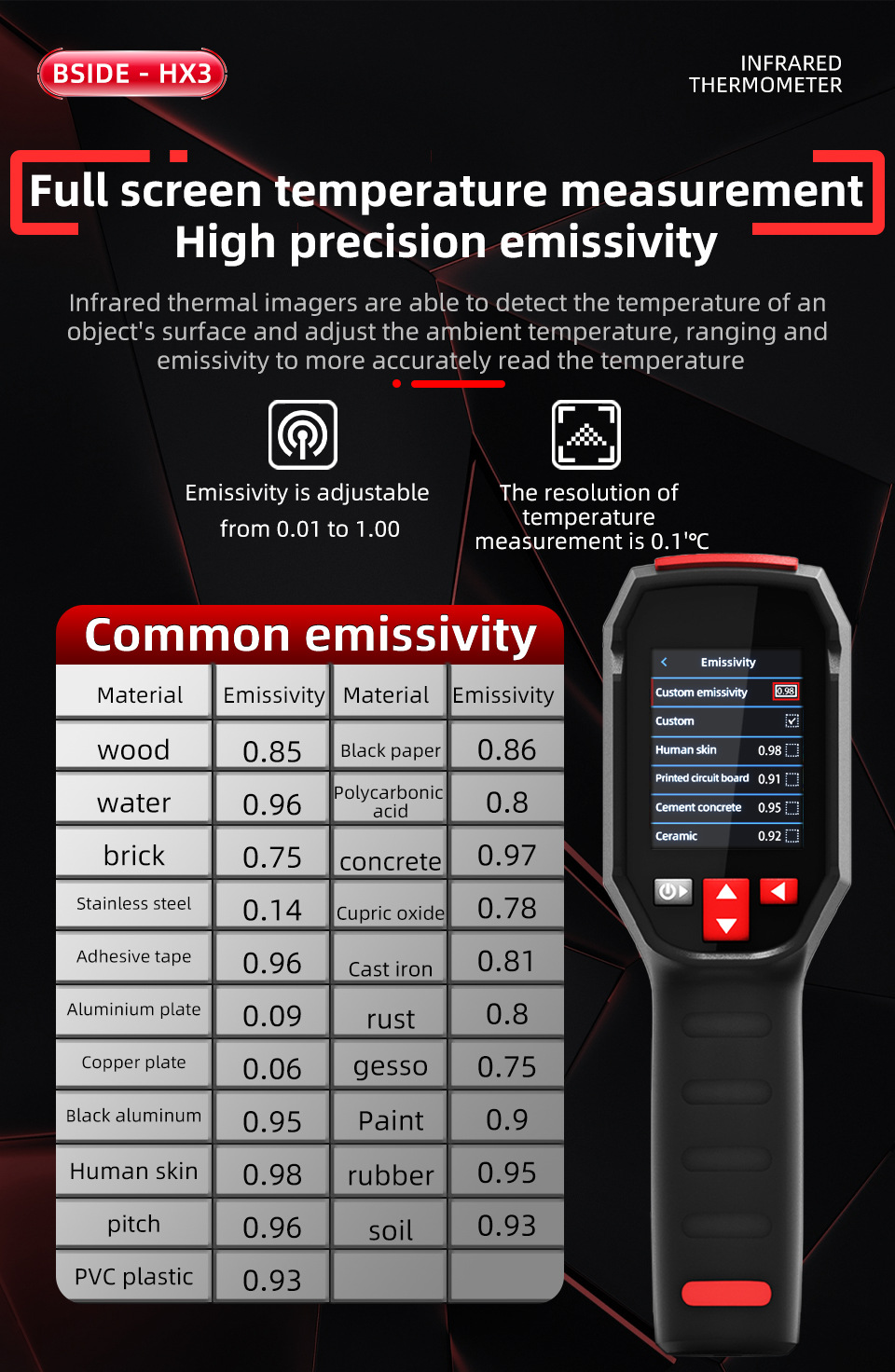

- Adjustable Emissivity: From 0.01 to 1.00 for accurate readings on various materials.
Technical Specifications
表格
| Parameter | Specification |
|---|---|
| Model | HX3 |
| Infrared Resolution | 240 × 240 pixels |
| Display | 2.4-inch TFT LCD |
| Temperature Range | -20°C to 550°C |
| Temperature Accuracy | ±2°C or ±2% of reading |
| Temperature Resolution | 0.1°C |
| Emissivity Adjustment | 0.01 to 1.00 (adjustable) |
| Thermal Sensitivity (NETD) | ≤0.1°C |

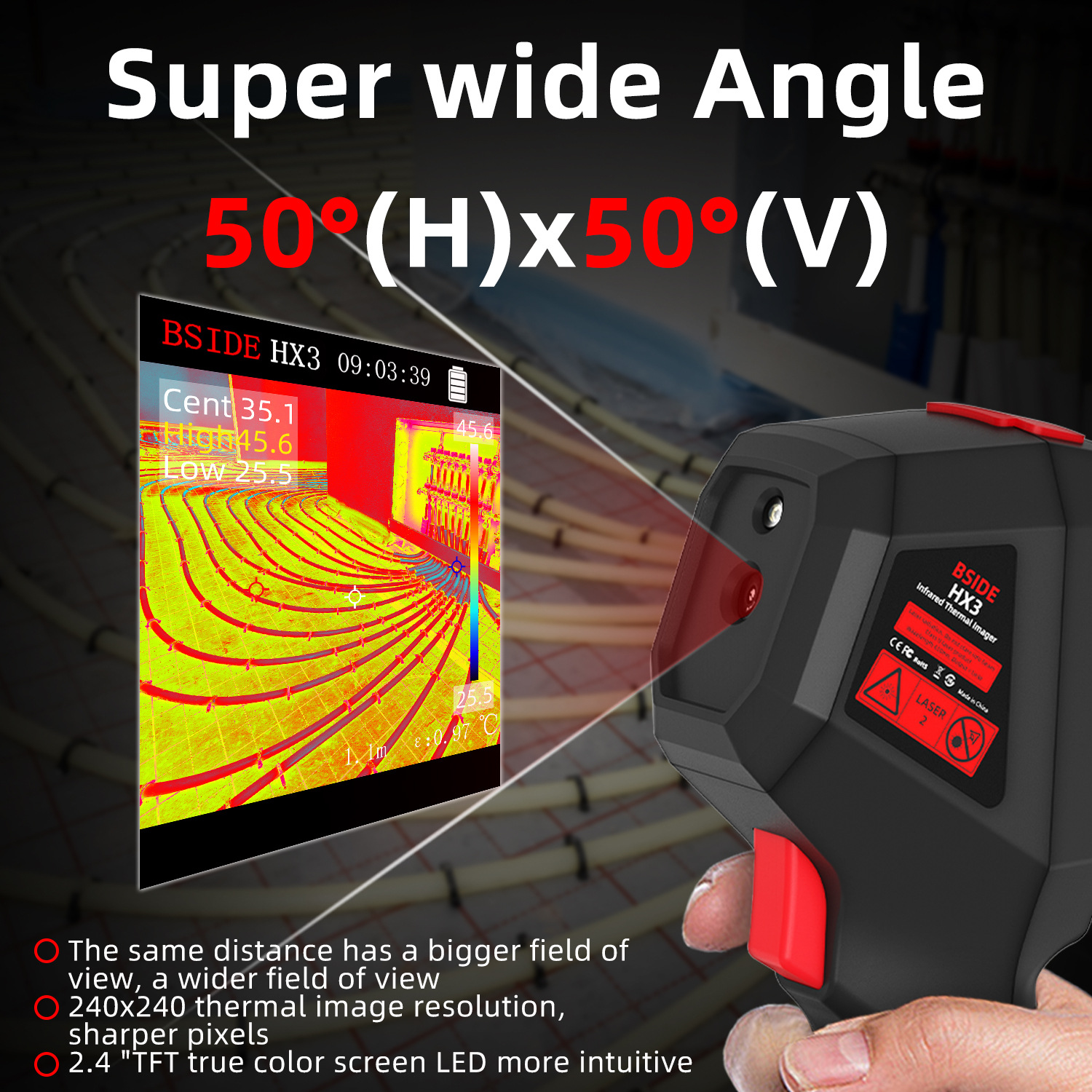

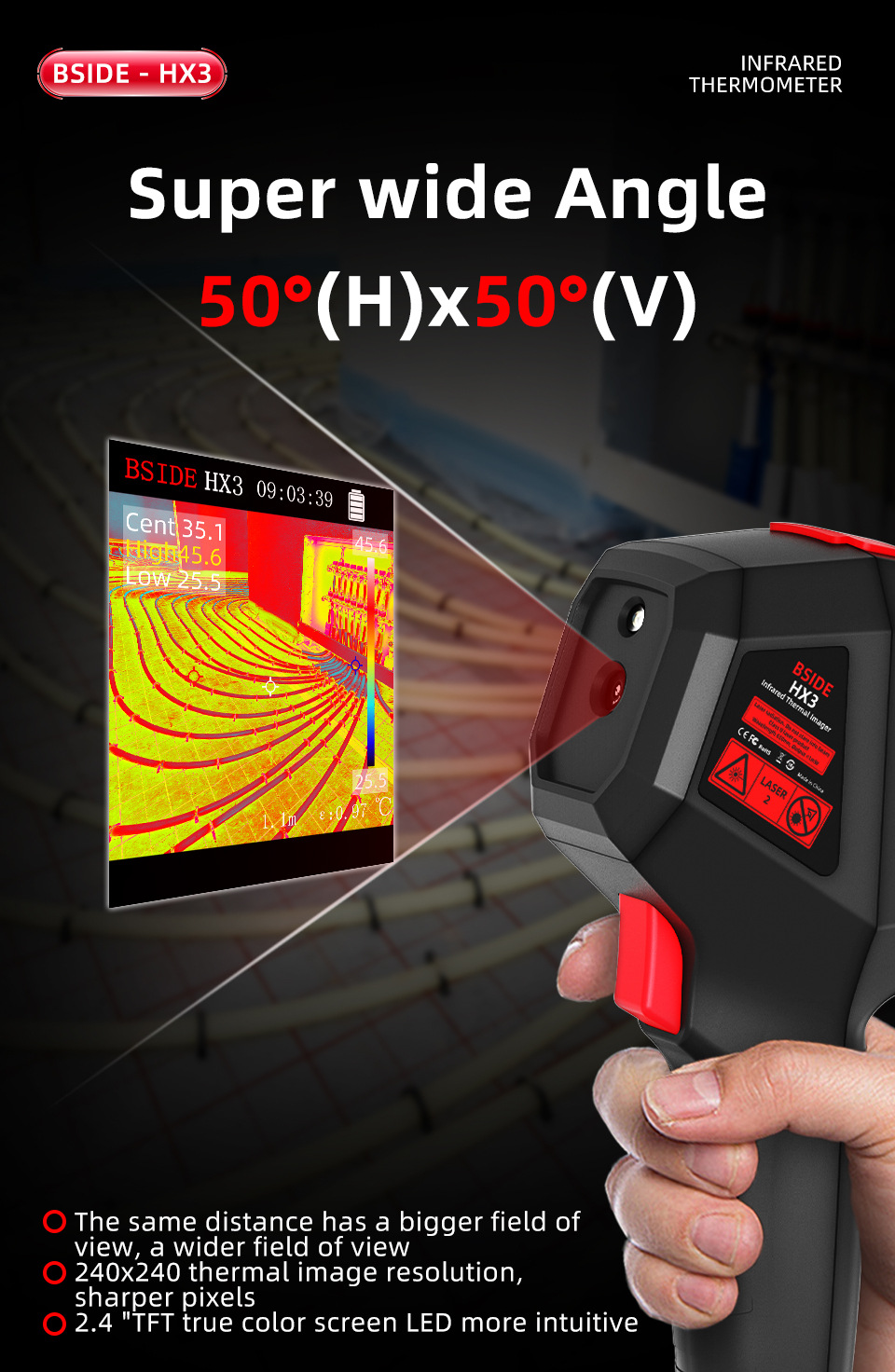

| Field of View (FOV) | 50° × 50° |
| Focal Distance | 0.3m to ∞ |
| Image Storage | Built-in 4GB memory (up to 30,000 images) |
| Image Format | BMP |
| Data Interface | USB Type-C |
| Power Supply | Rechargeable lithium battery |
| Battery Life | Up to 6 hours (typical use) |
| Auto Shutdown | Yes (configurable) |
| Laser Pointer | Yes (for targeting) |
| Tripod Mount | Yes (1/4"-20 thread) |
| Drop Resistance | 1.5 meters |
| Protection Rating | IP54 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions (L×W×H) | 193 × 59 × 77 mm |
| Weight | 280g (without battery) |
| Material | ABS plastic with anti-slip texture |
| Certifications | CE, RoHS |

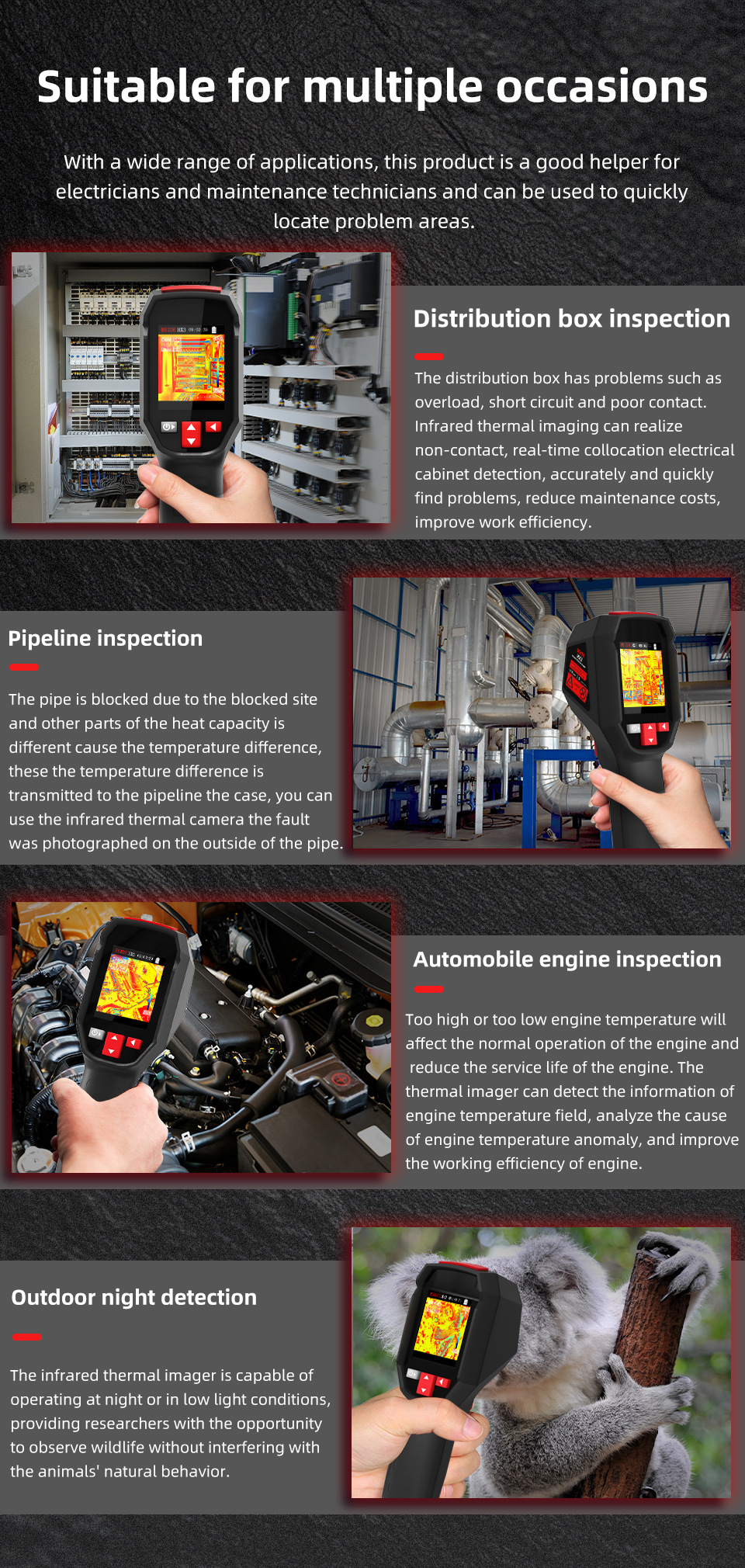

Applications

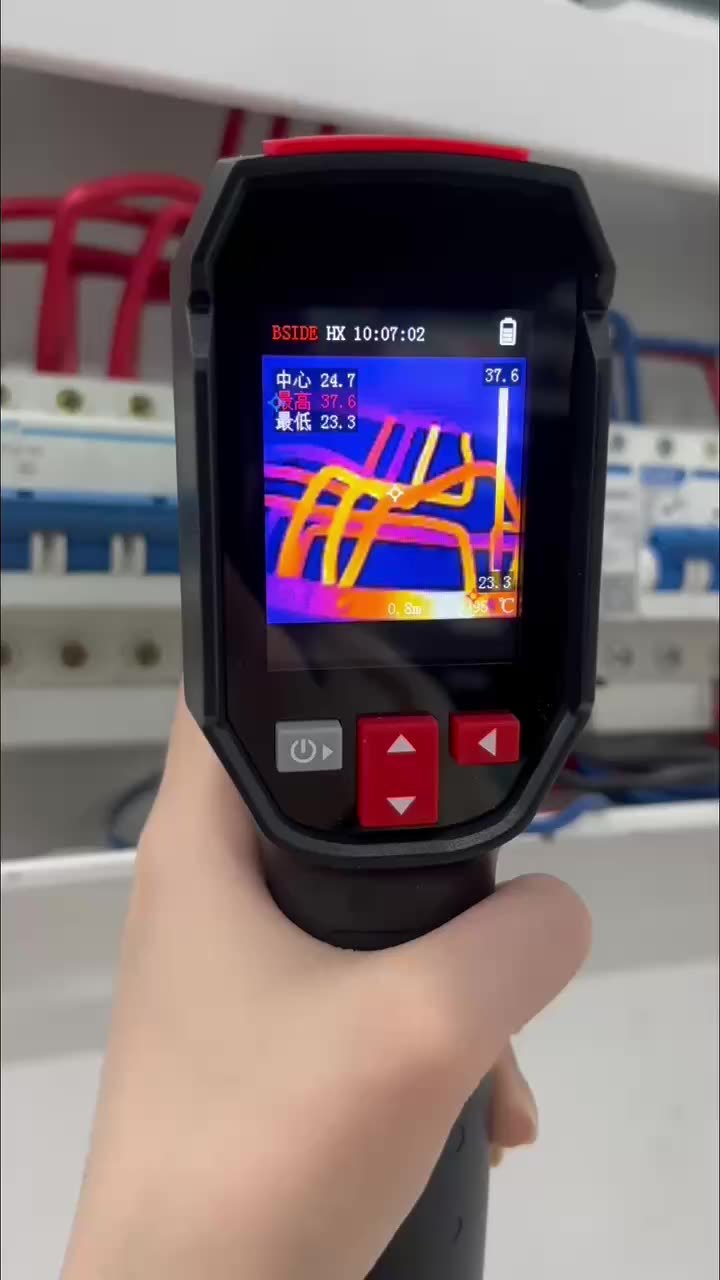

- Electrical Inspection: Detect overheating circuits, loose connections, and overloaded panels.

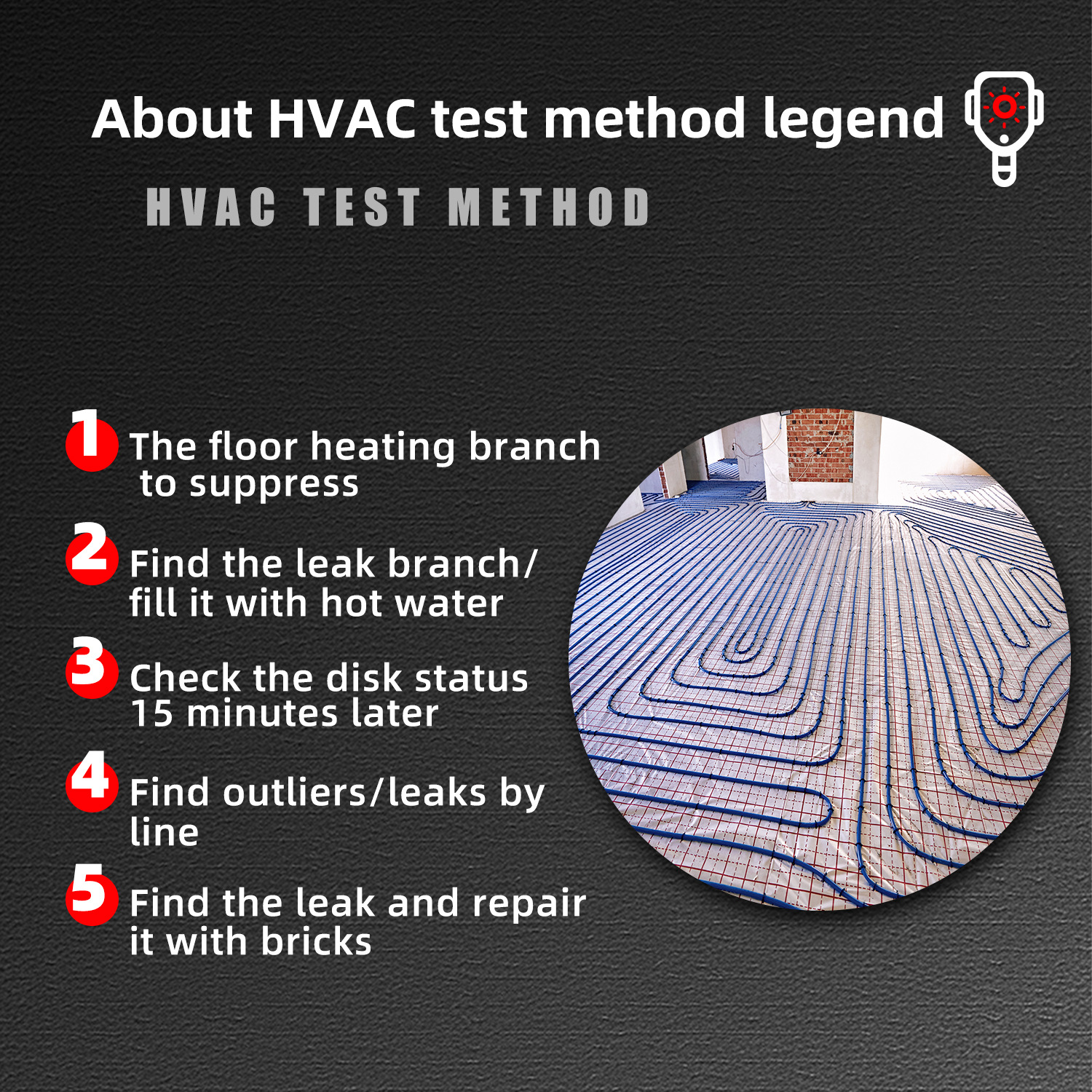

- HVAC & Plumbing: Locate leaks in underfloor heating, water pipes, and insulation gaps.
- Automotive Diagnostics: Analyze engine heat distribution and cooling system performance.
- Industrial Maintenance: Monitor motors, bearings, and machinery for abnormal heat patterns.
- Building Inspection: Identify thermal bridges, moisture, and insulation defects.
- Outdoor & Night Use: Observe wildlife or conduct security patrols in low-light conditions.

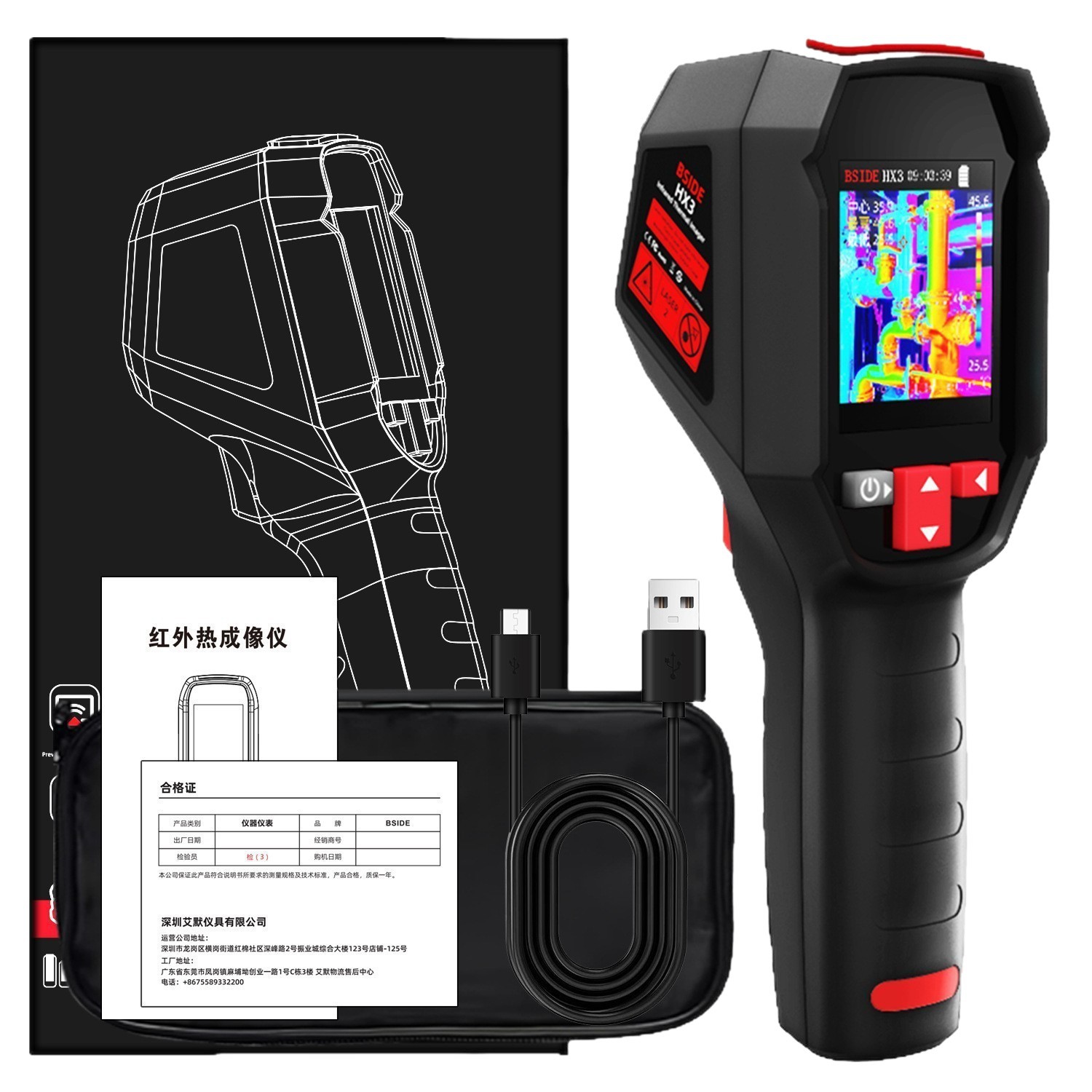

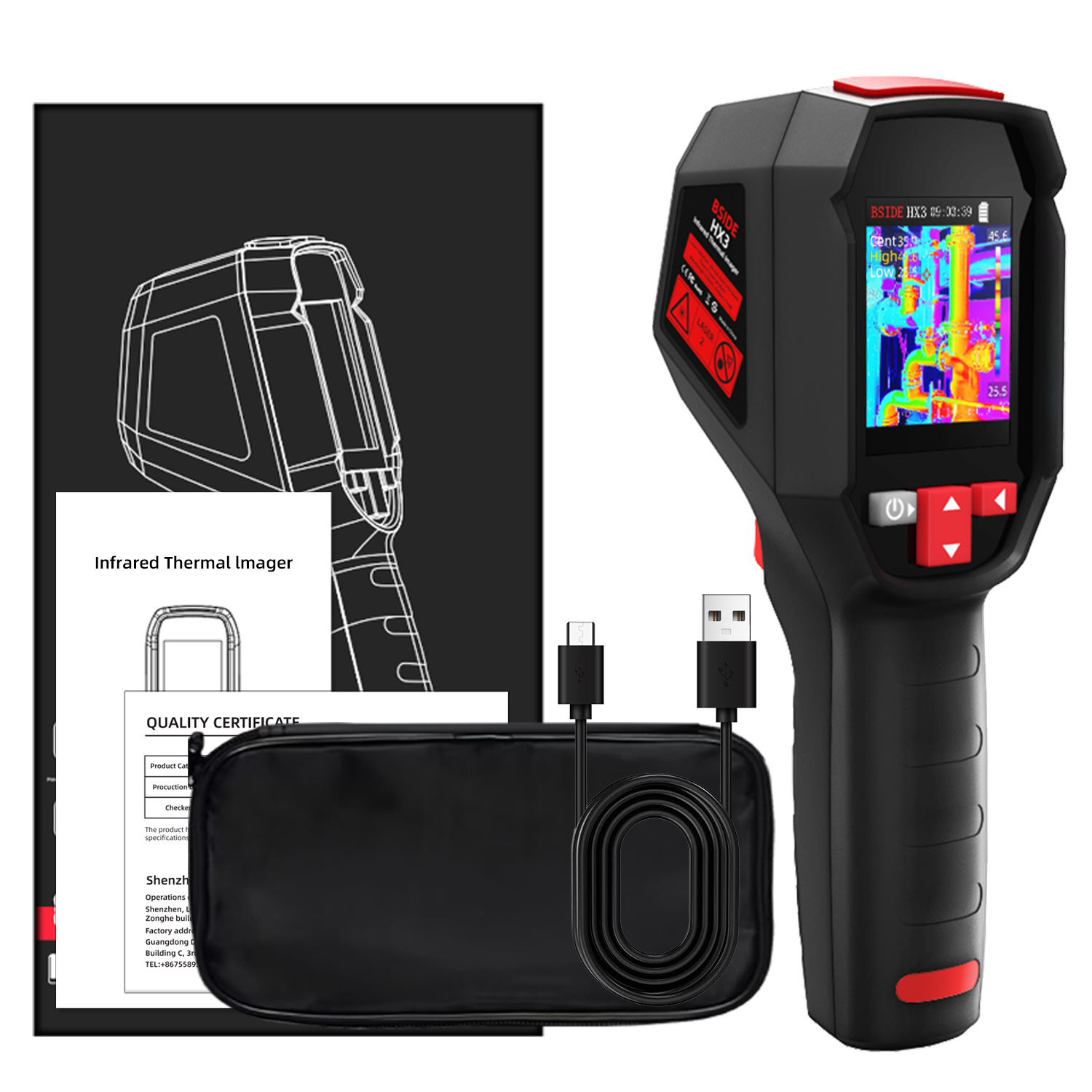

Package Includes
- 1 × Vindaion HX3 Thermal Imager
- 1 × USB Type-C Charging Cable
- 1 × Carrying Case
- 1 × User Manual
- 1 × Calibration Certificate
Upgrade your diagnostic toolkit with the Vindaion HX3 — where precision meets durability in thermal imaging.
