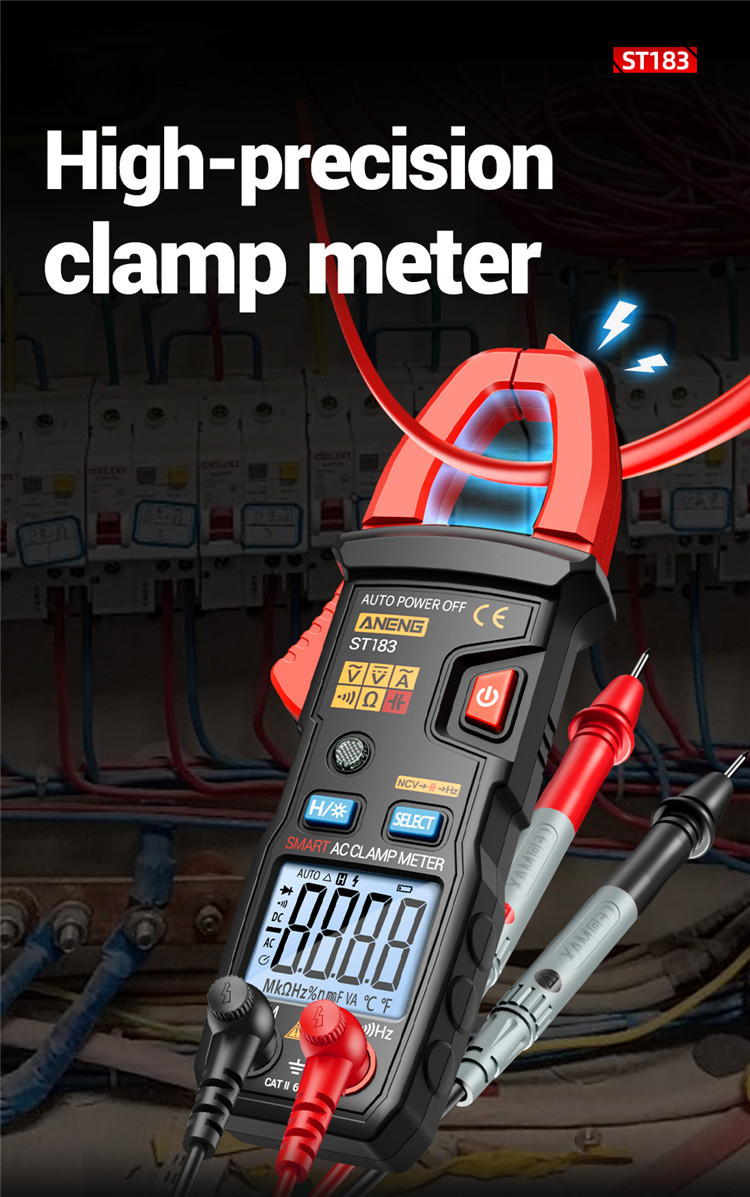

VINDAION ST183 High-Precision Digital Clamp Meter
$23.11 USD
$58.06 USD
Save $34.95 USD
Shipping calculated at checkout.
Quantity

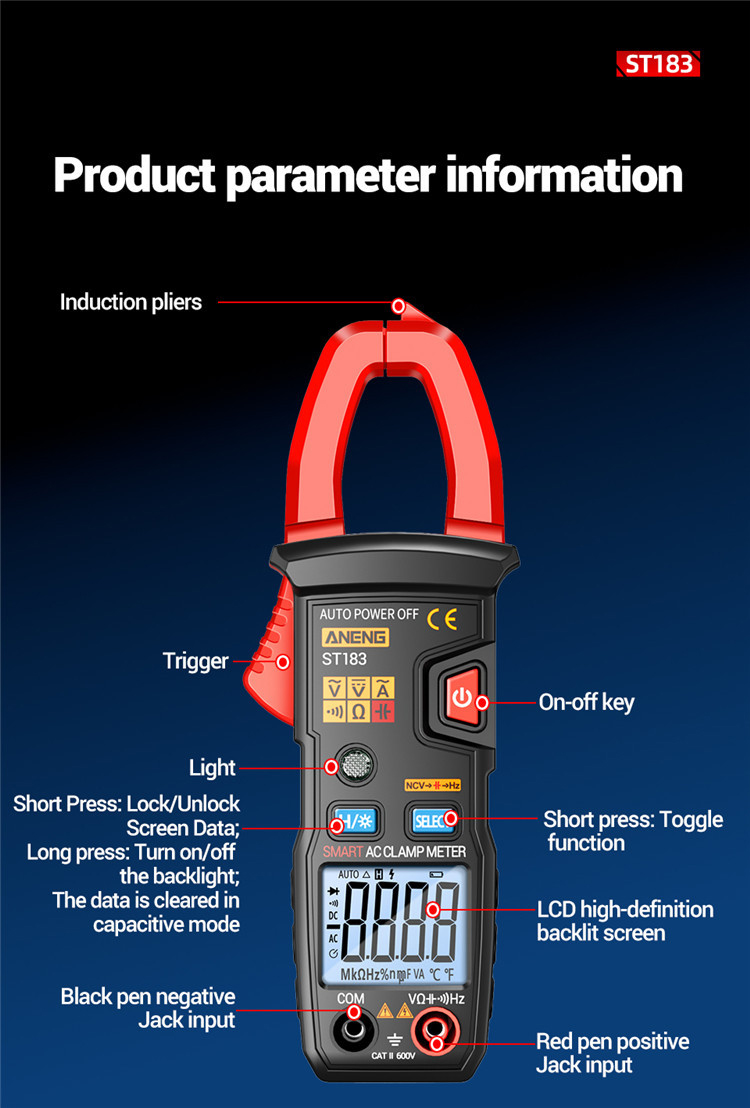

I. Product Overview
The VINDAION ST183 is a professional-grade digital clamp multimeter engineered for electricians, technicians, and DIY enthusiasts. Combining high-precision measurement capabilities with user-friendly features, it delivers reliable performance for AC/DC current, voltage, resistance, and more. With its robust design, auto-ranging technology, and advanced safety functions, the ST183 is the ideal tool for industrial, commercial, and residential electrical testing.

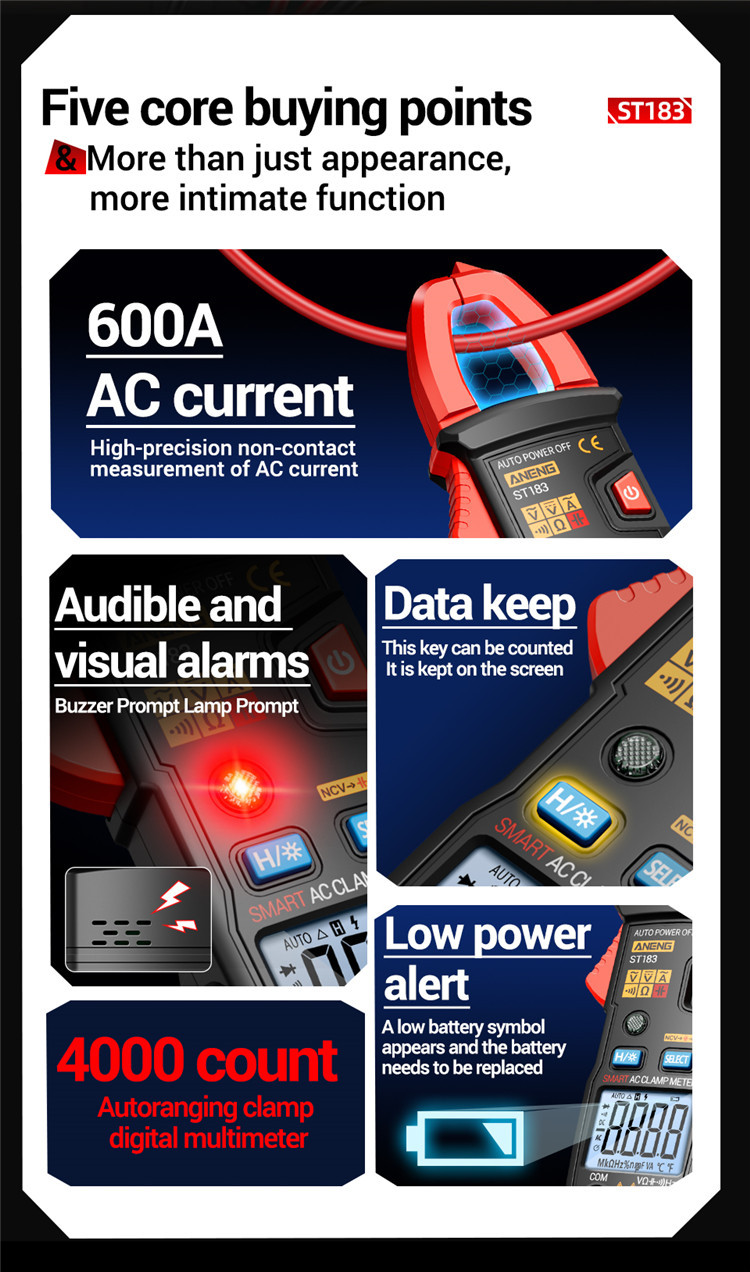

II. Product Highlights
-

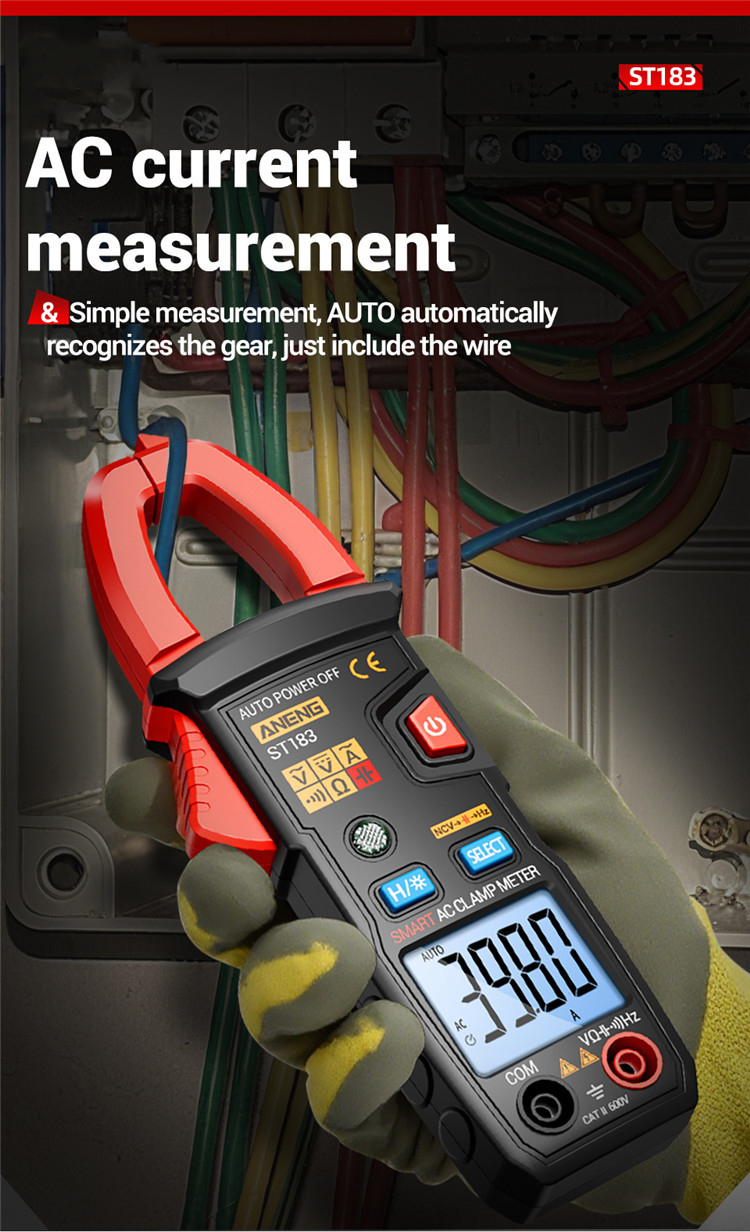

600A AC Current Measurement

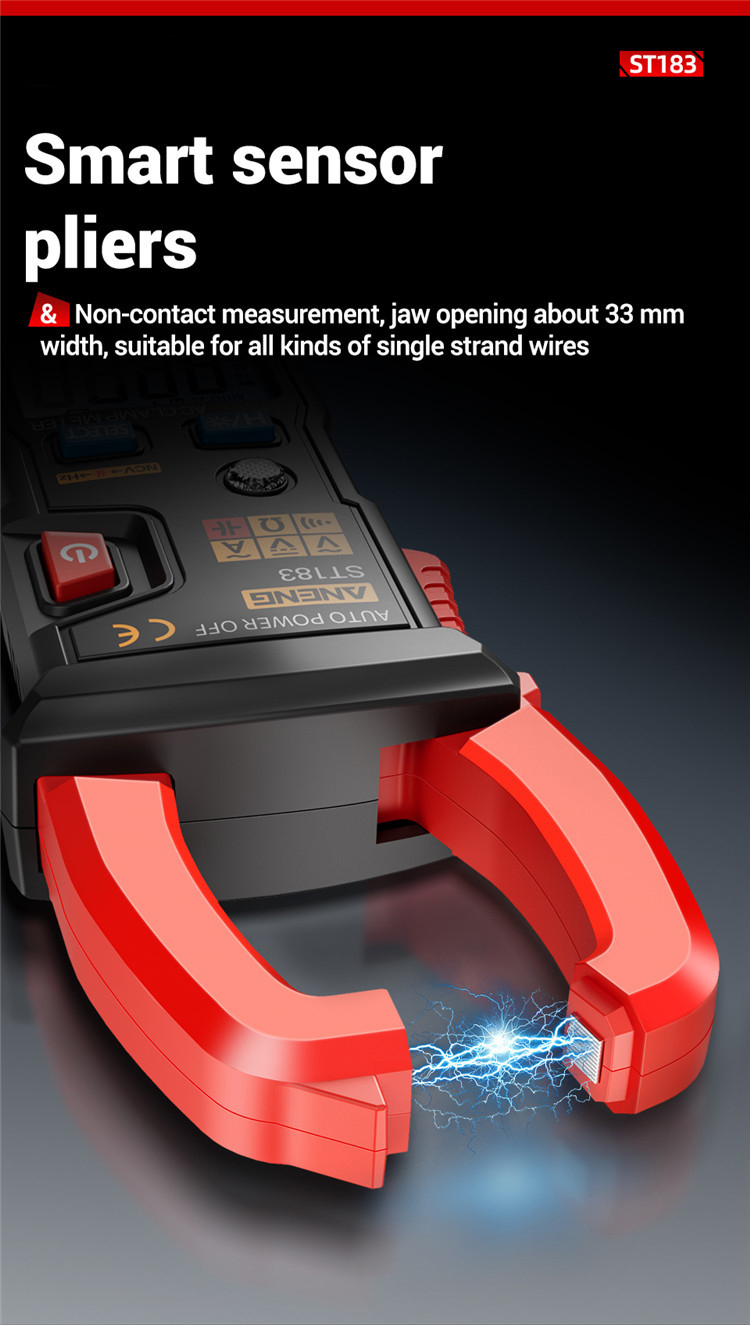

Accurately measures AC current up to 600A without wire stripping, thanks to its 33mm jaw opening—perfect for thick cables and complex wiring. -

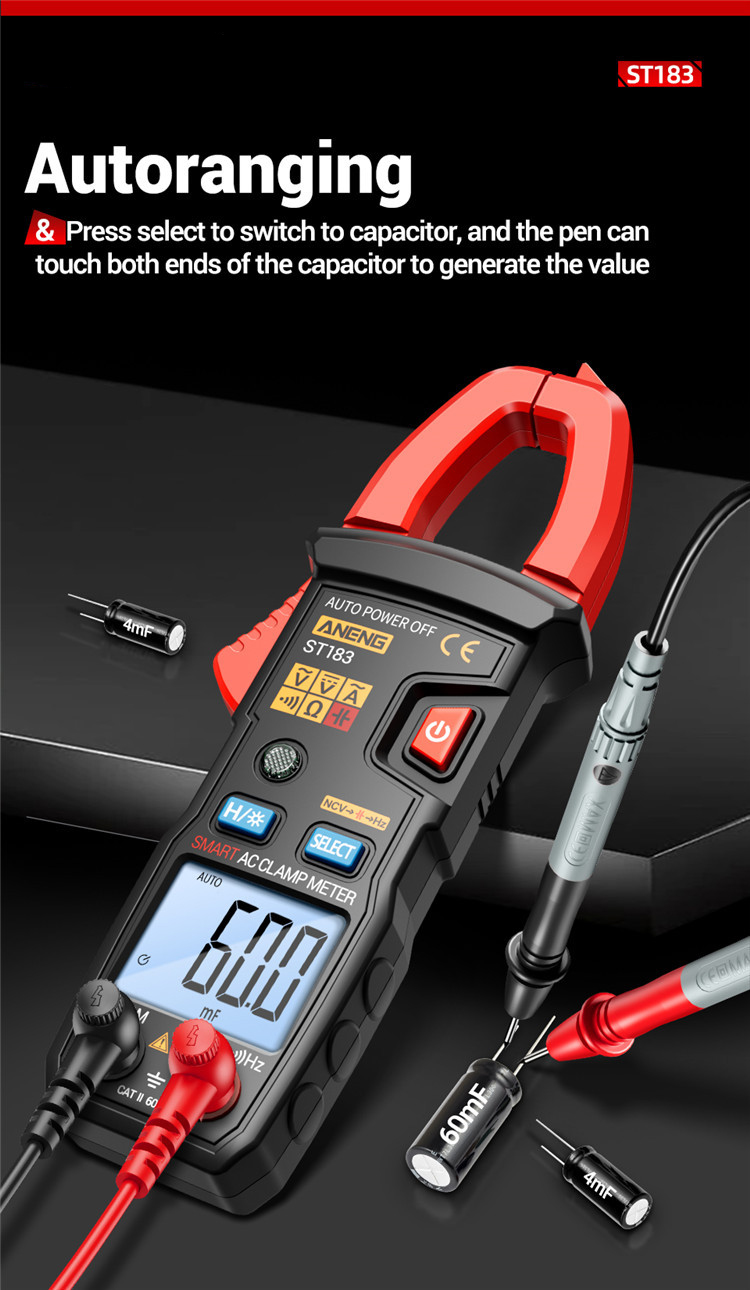

Smart Auto-Ranging
Automatically selects the optimal measurement range, eliminating manual adjustments and reducing human error. -

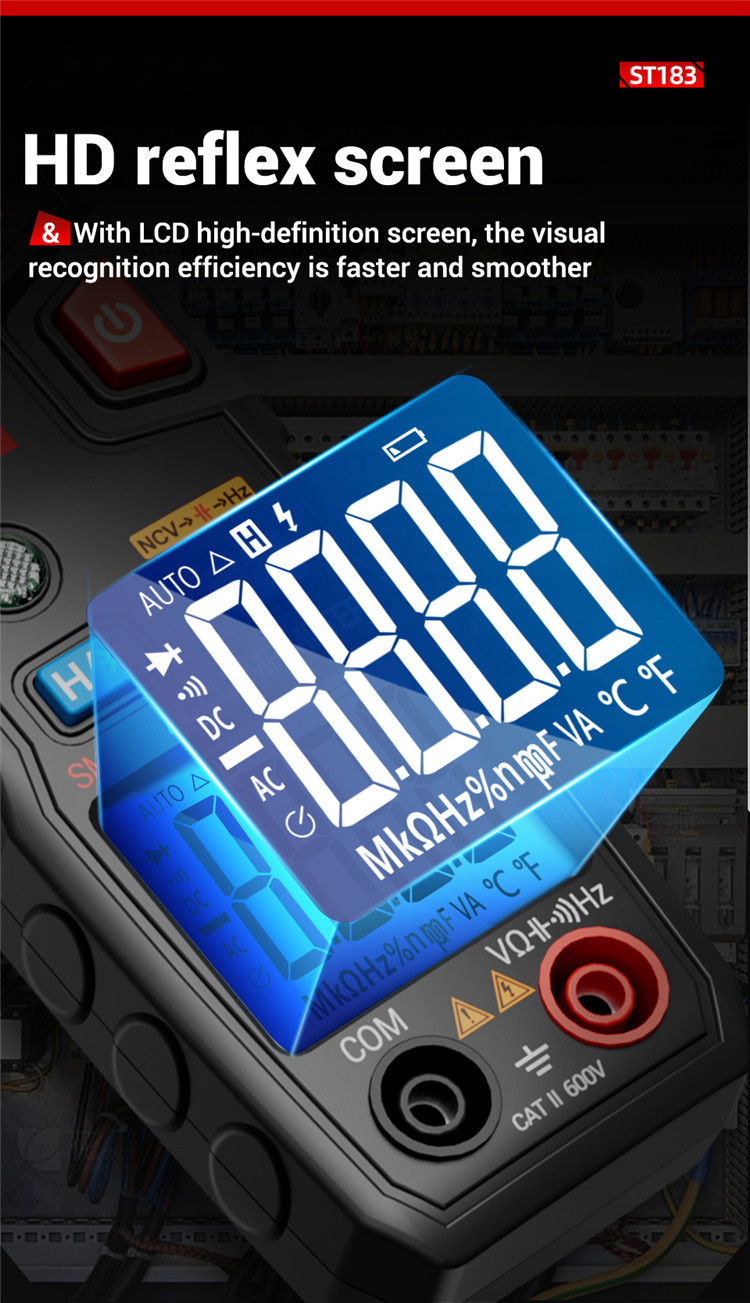

4000-Count High-Resolution Display
The backlit LCD screen shows up to 4000 counts, ensuring clear, precise readings even in low-light environments. -

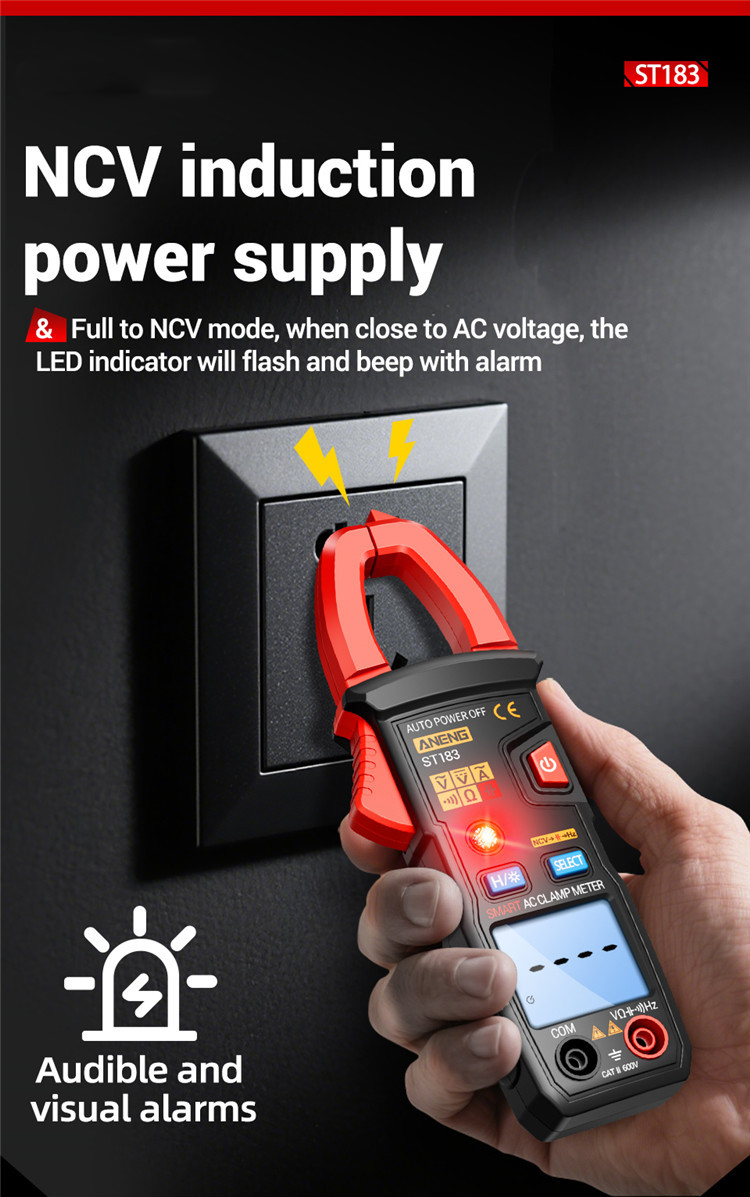

NCV (Non-Contact Voltage) Detection
Safely detects live AC voltage without direct contact, with audible and visual alarms (flashing red light + beeping) for enhanced safety. -

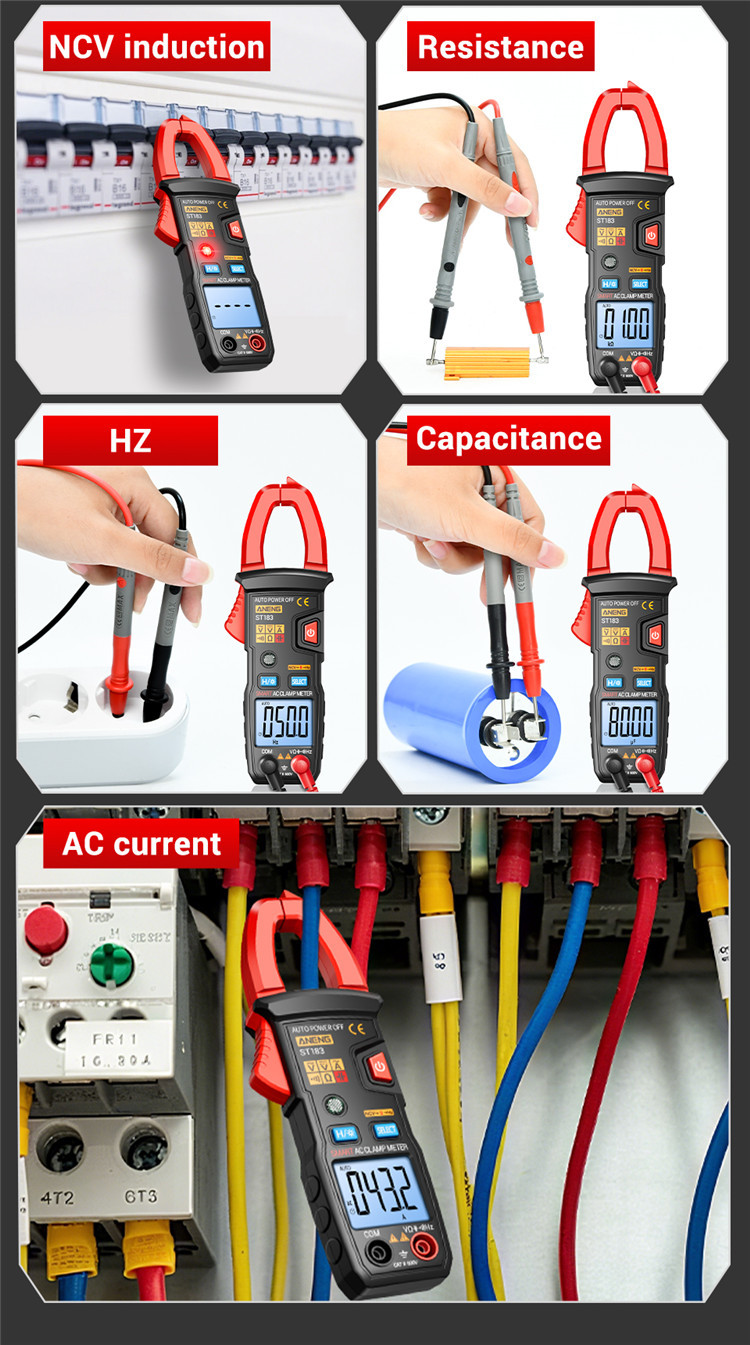

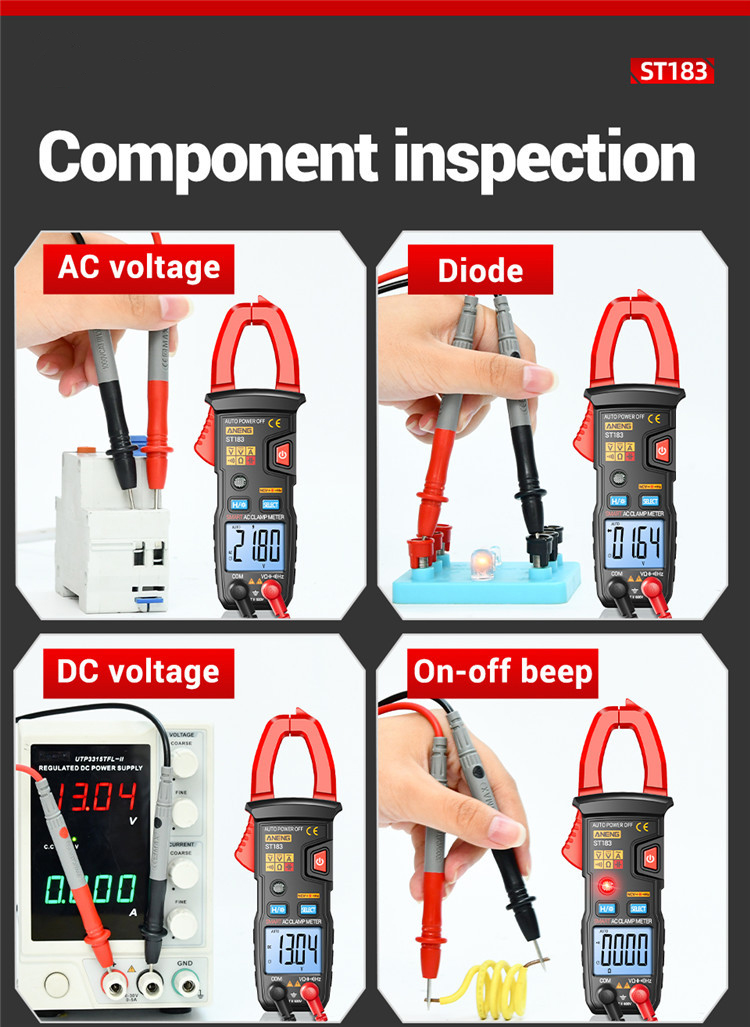

Multi-Function Versatility
Measures AC/DC voltage, resistance, capacitance, frequency, diode, and continuity—covering all essential electrical testing needs. -
Data Hold & Low Battery Indicator
Freeze readings with the data hold function, and get alerted when batteries need replacement. -

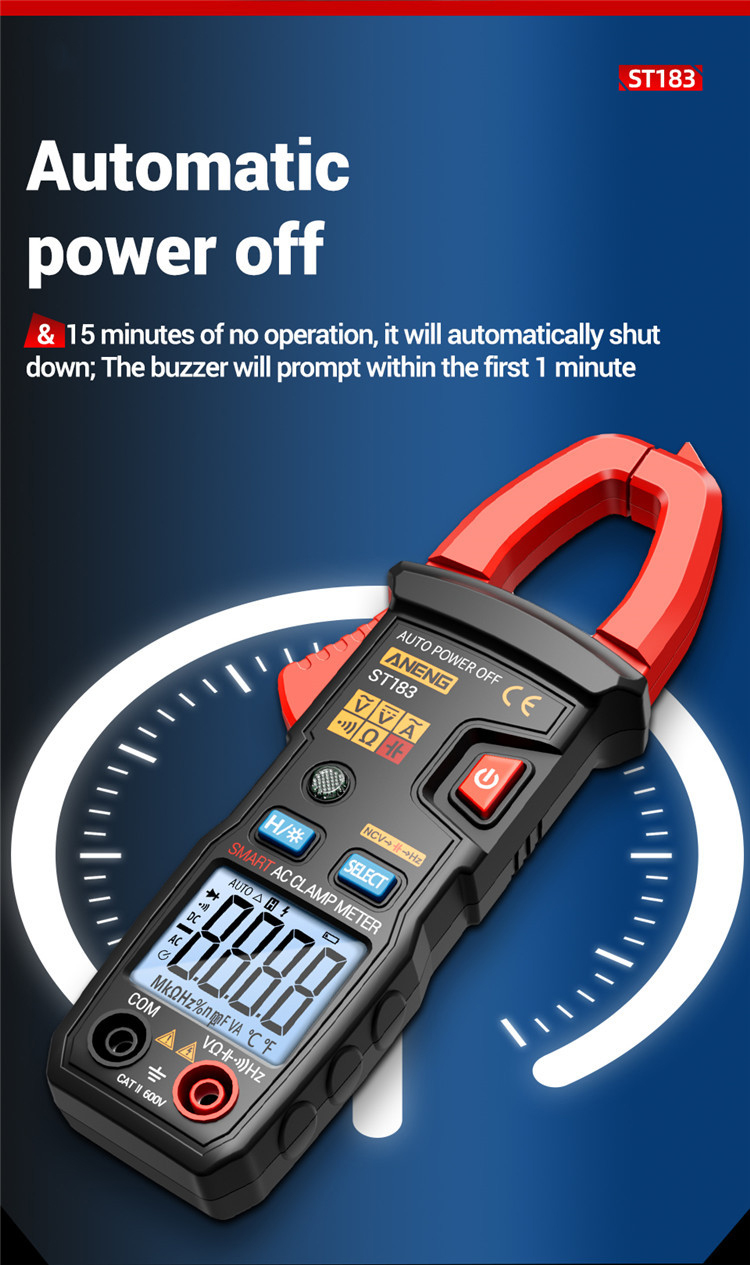

Auto Power-Off
Shuts down automatically after 15 minutes of inactivity to save power, with a 1-minute pre-shutdown beep reminder.

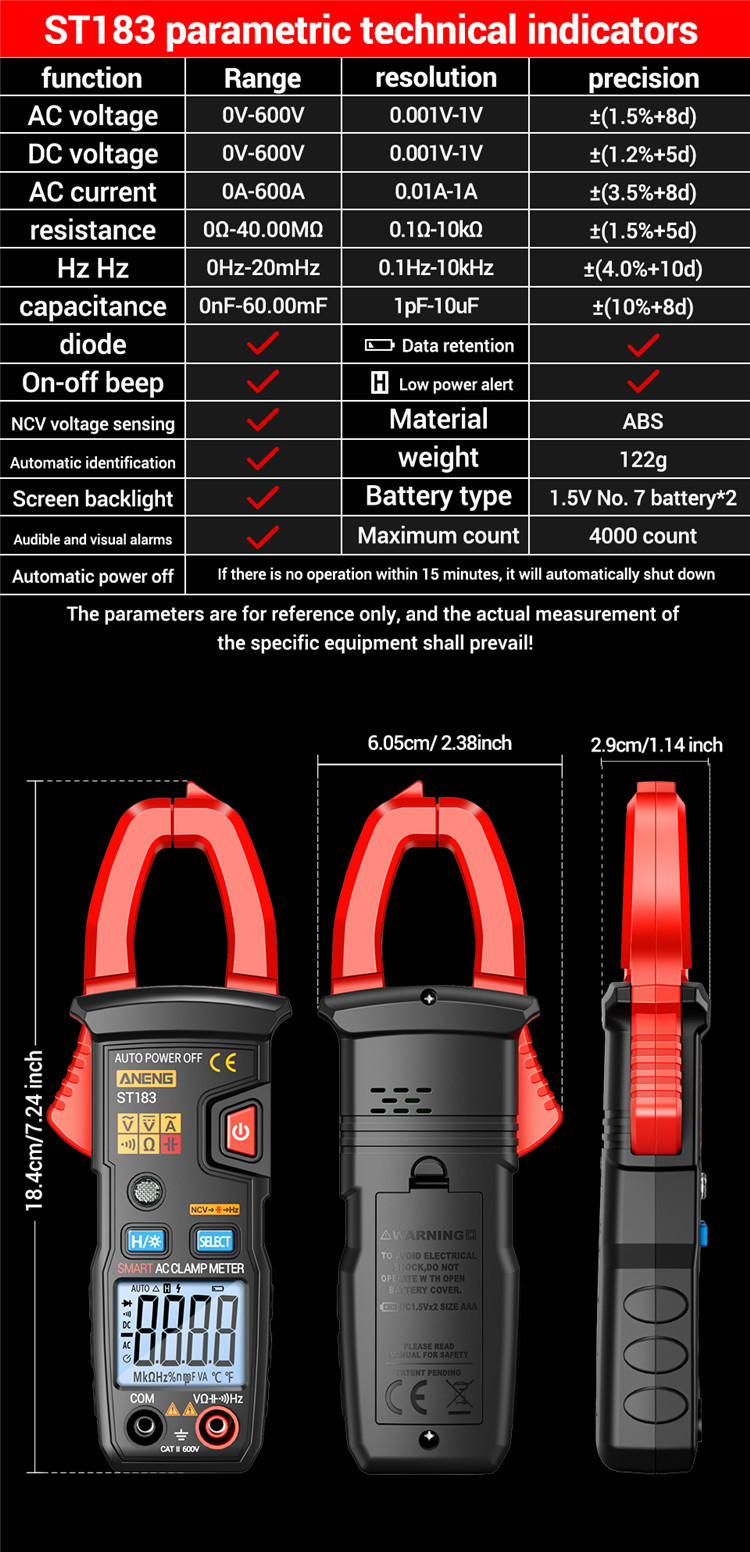

III. Technical Specifications
表格
| Parameter | Specification |
|---|---|
| AC Current | 0A–600A (Resolution: 0.01A–1A; Accuracy: ±(1.5%+8d)) |
| AC/DC Voltage | 0V–600V (Resolution: 0.001V–1V; Accuracy: ±(1.5%+8d) / ±(1.2%+5d)) |
| Resistance | 0Ω–40.00MΩ (Resolution: 0.1Ω–10kΩ; Accuracy: ±(1.5%+5d)) |
| Capacitance | 0nF–60.00mF (Resolution: 1pF–10μF; Accuracy: ±(10%+8d)) |
| Frequency | 0Hz–20MHz (Resolution: 0.1Hz–10kHz; Accuracy: ±(4.0%+10d)) |
| Diode Test | Yes (Forward voltage measurement) |
| Continuity Test | Audible beep for low-resistance circuits |
| NCV Detection | Non-contact AC voltage sensing with visual/audible alarms |
| Display | 4000-count backlit LCD |
| Power Supply | 1.5V AAA batteries × 2 |
| Dimensions | 184mm (L) × 65mm (W) × 38mm (H) |
| Weight | 122g |

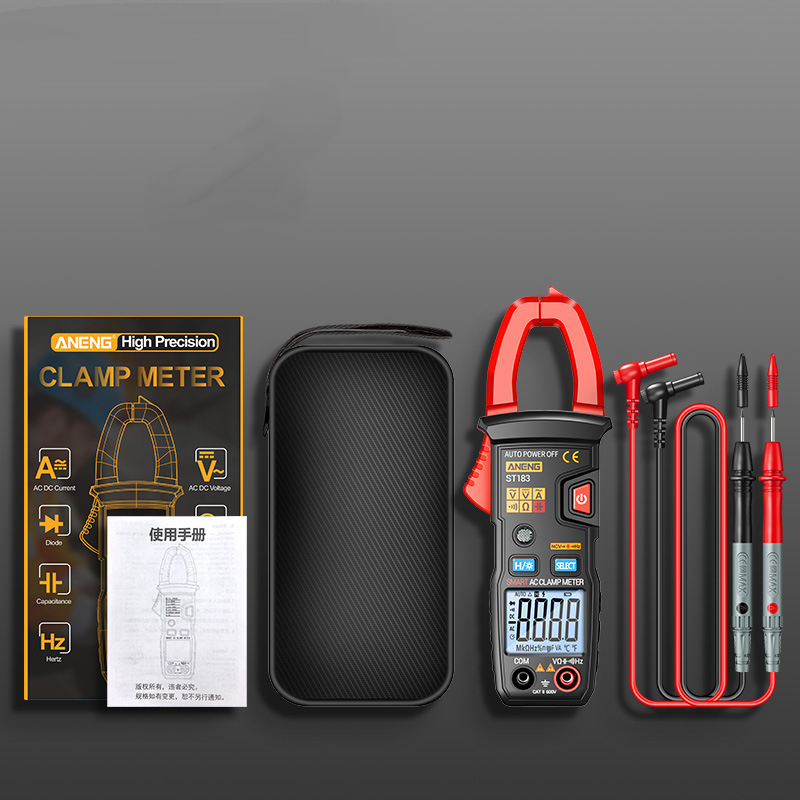

IV. Package Contents
- VINDAION ST183 Clamp Meter
- Test Leads (Red + Black)
- User Manual
- Storage Pouch
- Product Packaging Box
V. Safety & Usage Tips
- Current Measurement: Center the conductor in the clamp jaws to avoid errors. Only measure single-core wires (e.g., live/neutral), not multi-core cables.
- NCV Mode: Keep the meter close to the tested object for accurate detection.
- Auto Power-Off: The meter beeps 5 times 1 minute before shutting down—press any key to cancel.
Note: Specifications are for reference only. Actual performance may vary based on usage conditions. Always follow safety guidelines when working with electricity.
