VINDAION 5KVA/50KV AC/DC Power Frequency Withstand Voltage Test Set - Industrial High Voltage Testing System with Oil-Immersed Transformer & Precision Control Box for Electrical Equipment Insulation Validation
$863.55 USD
$1,580.73 USD
Save $717.18 USD
Shipping calculated at checkout.
Quantity
5KVA/50KV AC/DC Power Frequency Withstand Voltage Test Set
Industrial-Grade High-Voltage Testing Solution for Electrical Equipment & Insulation Validation
Product Overview

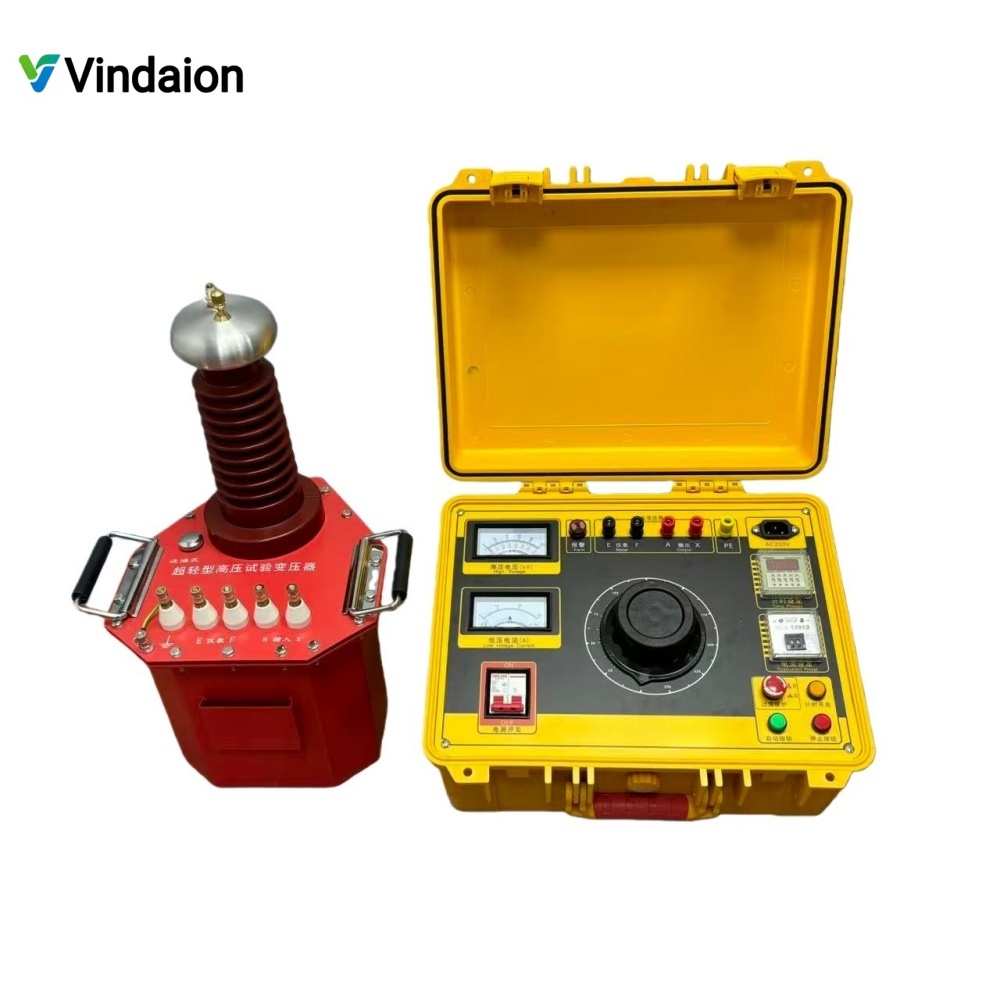

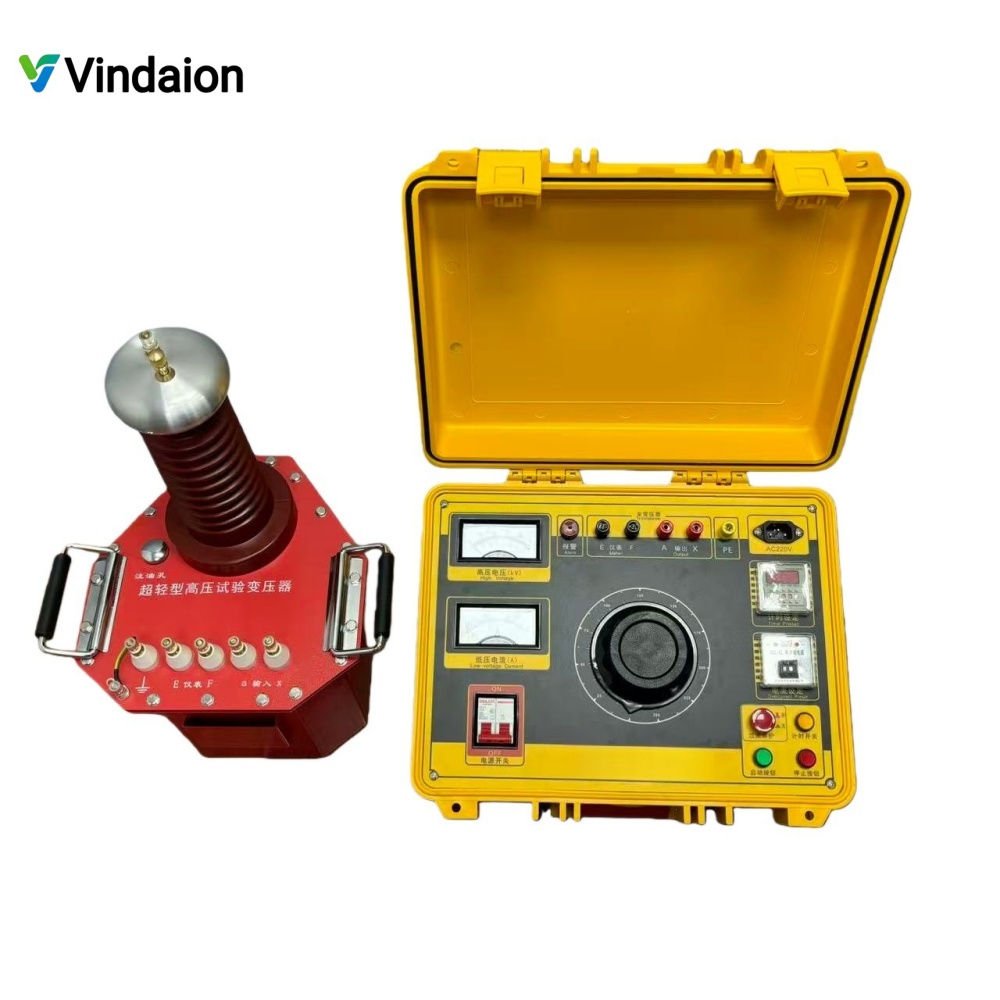

The 5KVA/50KV AC/DC Power Frequency Withstand Voltage Test Set is a professional-grade high-voltage testing system designed for rigorous insulation strength evaluation of electrical equipment, components, and insulating materials. Comprising a precision control box and an oil-immersed test transformer, this system delivers stable, accurate, and safe high-voltage output for both AC and DC withstand tests. Engineered for industrial and laboratory use, it meets international safety standards and is ideal for quality assurance, R&D, and maintenance in power systems, manufacturing, and research institutions.
Key Features & Engineering Advantages
-
Dual AC/DC Output Capability
- Supports both alternating current (AC) and direct current (DC) high-voltage testing modes.
- DC output voltage is 1.4 times the AC RMS voltage, enabling comprehensive insulation stress analysis under different conditions.
-
High-Precision Control & Measurement

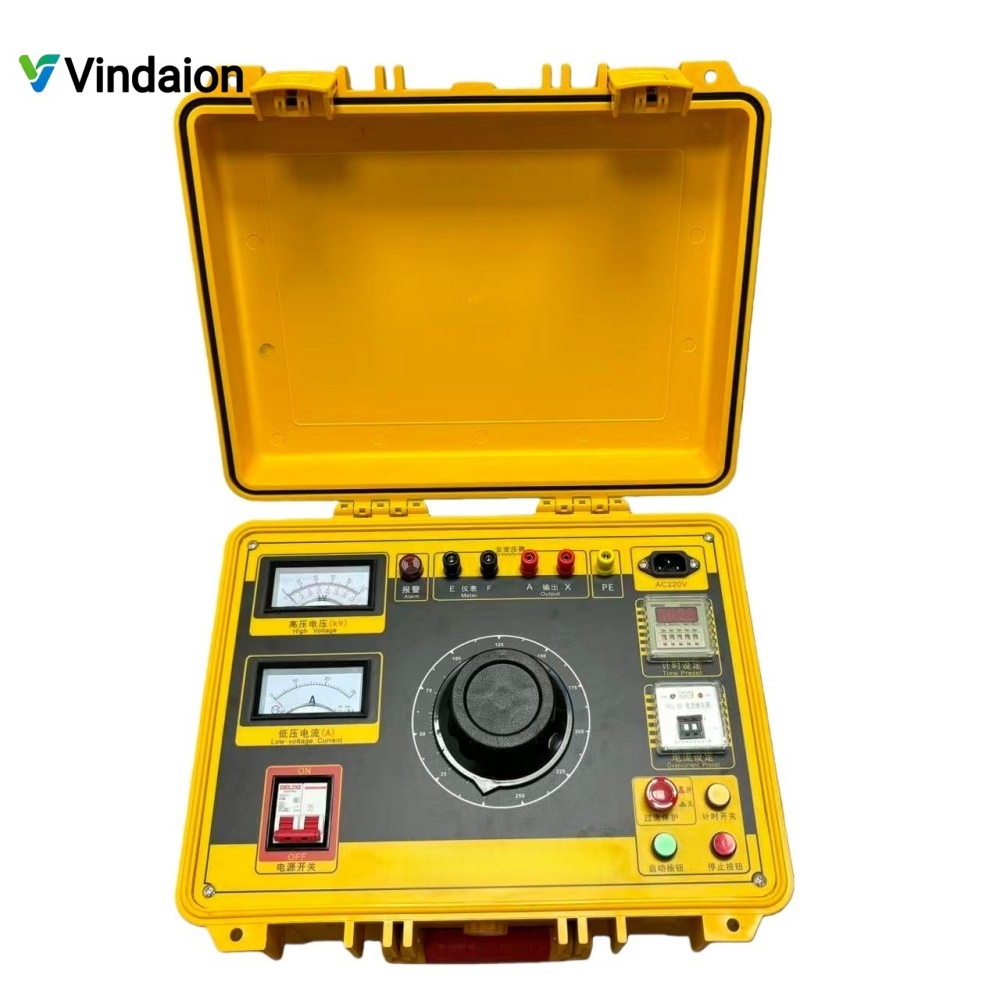

- Equipped with a digital control panel featuring real-time monitoring of voltage, current, and test duration.
- Voltage regulation via a smooth-rotation variac ensures stepless, precise voltage adjustment from 0 to 50kV AC / 70kV DC.
-
Comprehensive Safety Protection System
- Integrated overcurrent, zero-start, and emergency stop protection to prevent equipment damage and ensure operator safety.
- Audible and visual alarms activate upon fault detection or test completion.
-
Robust & Portable Design
- The oil-immersed transformer uses high-quality polyester漆包线 and premium insulating oil for superior dielectric strength and thermal stability.
- Compact and lightweight (65kg for the 5KVA unit), with a durable metal enclosure and integrated handles for easy transport.
-
Versatile Application Scope
- Suitable for testing transformers, circuit breakers, cables, bushings, insulators, and other high-voltage apparatus.
- Can be configured with optional accessories like discharge rods, protective sphere gaps, and HV digital voltmeters for advanced testing setups.
Detailed Technical Specifications (Model: KDYD 5/50)
| Parameter | Specification |
|---|---|
| Rated Capacity | 5 kVA |
| Low-Voltage Input | 200 V, 25 A |
| AC High-Voltage Output | 50 kV, 100 mA |
| DC High-Voltage Output | 70 kV, 70 mA (1.4 × AC) |
| Voltage Regulation Range | 0 ~ 50 kV AC / 0 ~ 70 kV DC |
| Measurement Ratio | 500:1 |
| Input Power Supply | Single-phase AC 220V ±10%, 50Hz |
| Output Waveform | Sinusoidal, distortion rate < 3% |
| Voltage Accuracy | ≤ ±1.0% F.S. |
| Current Accuracy | ≤ ±1.0% F.S. |
| Timing Range | 0 ~ 9999 seconds (adjustable) |
| Insulation Class | Class A (105°C) |
| Cooling Method | Oil-immersed, natural air cooling |
| Operating Temperature | -10°C ~ +40°C |
| Relative Humidity | ≤ 85% RH (non-condensing) |
| Transformer Weight | 65 kg |
| Control Box Weight | 15 kg |
| Overall Dimensions (L×W×H) | 500 × 500 × 800 mm |
Note: The DC output current is approximately 0.7 times the AC output current due to rectification losses.
System Configuration & Accessories
The complete test set includes:
- 1 × High-Voltage Test Transformer (Oil-immersed, 5KVA/50KV)
- 1 × Control Box (Manual or automatic control available)
- 1 × Discharge Rod
- 1 × HV Digital Voltmeter (Optional)
- 1 × Protective Sphere Gap (Optional)
- 1 × Set of Test Leads & Grounding Cables
- 1 × Operation Manual & Calibration Certificate
Applications
- Power Utilities: Routine testing of substation equipment and transmission lines.
- Manufacturing: Quality control of electrical appliances, motors, and switchgear.
- Research & Education: Laboratory experiments in high-voltage engineering.
- Maintenance: Preventive testing of aging infrastructure and insulation systems.
Compliance & Standards
- Designed and tested in accordance with IEC 60060-1, GB/T 16927.1, and other international high-voltage testing standards.
- CE certified for electrical safety and electromagnetic compatibility.
Why Choose This Test Set?
Engineered for precision, safety, and durability, the 5KVA/50KV AC/DC Withstand Voltage Test Set is the trusted choice for engineers who demand reliability in high-stakes electrical testing. Its modular design allows for future upgrades, and its robust construction ensures long-term performance in demanding environments.
