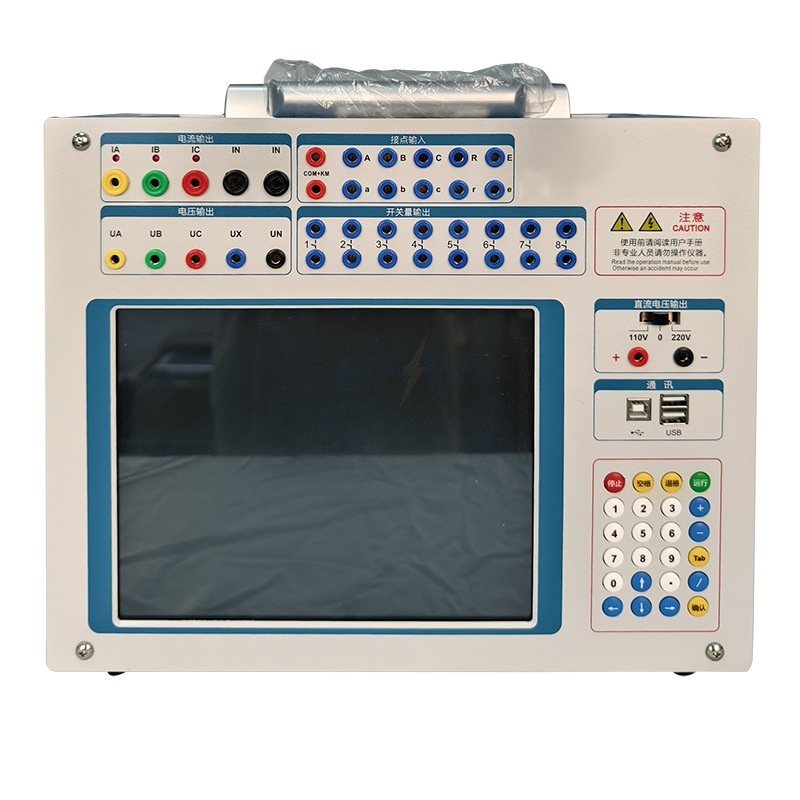

VIND-802 Three-Phase Microcomputer-Based Relay Protection Tester – High-Precision AC/DC Current & Voltage Test System for Power System Protection
Product Details：
The VIND-802 is a state-of-the-art three-phase relay protection test system designed to meet the rigorous demands of modern power system testing. Engineered with advanced DSP control technology and high-fidelity linear power amplifiers, this tester delivers exceptional accuracy (0.2 class) and stability for a wide range of applications, including transformer differential protection testing, fast bus transfer (FBT) tests, and backup power automatic switching (BZT) tests.
Its compact, lightweight design (13kg) and integrated software platform make it an ideal tool for both laboratory and field testing, offering unparalleled flexibility and reliability for electrical engineers and technicians.
Key Features
Flexible Output Configuration: Capable of 4-phase voltage and 3-phase current output, the VIND-802 supports various testing modes, including conventional relay testing and complex three-phase transformer differential tests.
High-Fidelity Linear Amplification: Utilizes modular linear power amplifiers instead of switching-type amplifiers to ensure smooth waveforms, minimal distortion, and no high-frequency interference, guaranteeing precision from micro to high current levels.
Advanced DSP Control: The output section is controlled by a high-speed Digital Signal Processor (DSP), enabling real-time signal processing, high-resolution D/A conversion, and superior waveform quality.
Comprehensive Software Suite: The accompanying software facilitates automated complex calibration tasks, fault recording playback, real-time data storage, vector diagram display, and report generation.
Dedicated DC Power Supply: Features an independent DC output channel providing stable 110V and 220V for auxiliary power testing.
Robust Protection & Connectivity: Equipped with comprehensive self-protection mechanisms (soft-start, fault self-diagnosis, output locking) and a full range of interfaces including USB for seamless PC communication.
Technical Specifications
AC Current Output
Output Accuracy: 0.2 Class
Phase Current (RMS): 0 – 40A per phase
3-Phase Parallel Current (RMS): 0 – 120A
Continuous Operating Current (RMS): 10A per phase
Max Output Power: 420VA per phase; 900VA (max) in 3-phase parallel mode
Max Operating Time (Parallel): 10 seconds
Frequency Range (Fundamental): 20 – 1000Hz
Harmonic Generation: 1st – 20th order
DC Current Output
Output Accuracy: 0.2 Class
Current Output: 0 – ±10A per phase; 0 – ±30A (3-phase parallel)
Max Load Voltage: 20V
AC Voltage Output
Output Accuracy: 0.2 Class
Phase Voltage (RMS): 0 – 120V
Line Voltage (RMS): 0 – 240V
Output Power: 80VA (Phase) / 100VA (Line)
Frequency Range (Fundamental): 20 – 1000Hz
Harmonic Generation: 1st – 20th order
DC Voltage Output
Output Accuracy: 0.2 Class
Phase Voltage Amplitude: 0 – ±160V
Line Voltage Amplitude: 0 – ±320V
Output Power: 70VA (Phase) / 140VA (Line)
Binary I/O & Time Measurement
Binary Inputs: 10 channels (Industrial grade). Dry contact: 1-20mA, 24V; Potential contact: "0" (0 to +6V), "1" (+11V to +250V).
Binary Outputs: 8 pairs (Industrial grade). DC: 220V/0.2A; AC: 220V/0.5A.
Time Measurement Range: 0.1ms – 9999s
Time Measurement Accuracy: 0.1ms
General Specifications
Dimensions (W×D×H): 360 × 280 × 135 mm
Weight: 13 kg
Power Supply: AC 220V ±10%, 50/60Hz
Operating Temperature: -10°C to +50°C
